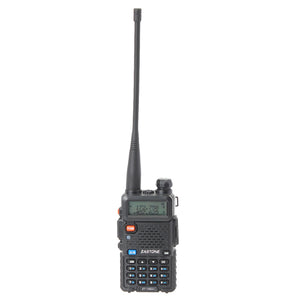

Zastone ZT-V8A Plus 136-174/400-520MHz Dual Band DTMF Walkie Talkie

Zastone ZT-V8A Plus 136-174/400-520MHz Dual Band DTMF Walkie Talkie

  • Save R 2,518.24
Tax included.
SKU:

Description :

Zastone ZT-V8A Plus 136-174/400-520MHz Dual-Band DTMF Walkie Talkie

128 Channels
LED Flashlight
Large LCD Display
Hight /Low RF Power Switchable
Emergency Alert
Low Battery Alert
Battery Saver
Time-out Timer
Keypad Lock
Monitor Channel
Built-in VOX Function

Frequency Range: 136-174 / 400-520MHz
Dual-Band Display, Dual Freq. Display, Dual-Standby
Output Power: 5 /1Watts
25KHz/12.5KHz Switchable
50 CTCSS and 104 CDCSS
1750Hz Brust Tone
FM Radio (65.0MHz-108.0MHz)
Channel Step: 2.5/5/6.25/10/12.5/25KHz

Specifications :

Main functions
Dual band, dual display A/B band independent operation
128 groups channels storage Shortcut menu operation mode
VFO & Memory channels scan Emergency Alarm
Tri-color background light selectable 0~9 grades VOX selectable
PTT & ANI ID FM radio and 25 stations storage
1750Hz Brust Tone Time-out Timer
Channel Monitor  Battery Saver
Keypad Lock Channel Step: 2.5/5/6.25/10/12.5/25KHz
Low Battery Alert ROGER SET
Emergency Alert 25KHz/12.5KHz Switchable
FM Radio (65.0MHz-108.0MHz) Large LCD Display
LED Flashlight Hight /Low RF Power Switchable
Voice companding 50 CTCSS/ 104DCS coder & tone searching
dual standby PC programmable
Wide/Narrow Band(25kHz/12.5kHz) Transmitter time-out timer(TOT)
High/Low TX power selectable Busy channel lock-out(BCLO)
General
Frequency Range 65-108MHz(FM Receive only)
136-174MHZ and 400-520HZ (TX/RX)
Channel No. 128
Frequency Stability ±2.5ppm
Antenna High gain DualBand  antenna
Antenna Impedance 50Ω
Operating Voltage DC 7.4V
Mode of operation  Simple or semi-duplex
Dimension(W x H x D) 100 x 52 x 32 mm
Weight 250g(including battery, antenna)
Antenna :  SMA -Female
Earpiece / mic type :  Kenwood Plug type
Transmitter
Output power 4W / 1W (Max 5W)
Modulation Mode 16kΦF3E / 11kΦF3E
Maximum deviation  5kHz(Wide) /  2.5kHz(Narrow)
Spurious Radiation  7μW
Adjacent Ch. power ≤-65dB(Wide) / ≤-60dB(Narrow)
Pre-emphasis characteristics 6dB
Current ≤1.6A(5W)
CTCSS/DCS deviation 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity 8-12mv
Intermediation distortion ≤10%

Package included :

1 x Zastone ZT-V8A Plus Dual Band Walkie Talkie
1 x Band Antenna
1 x Battery
1 x Charger
1 x Belt clip
1 x Strap
1 x Earphone for free
1 x English User Manual

Details pictures :
