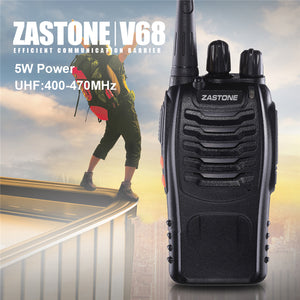

Zastone ZT-V68 UHF 400-470MHZ Professional Handheld 5W 16CH Two Way Radio PMR CB Walkie Talkie
Tax included.
Features :
50 CTCSS/105 CDCSS.
V OX Function.
Voice Prompt.
PC Programming.
Emergency Alarm.
Intelligent Charging.
Battery Save.
Low Voltage Alert.
Time-out Timer.
Torch Light.
Specification :
| Model: Zastone ZT-V68 | |
| Frequency Range | UHF 400-470MHz |
| Channel Capacity | 16 |
| Channel Spacing | 25KHz |
| Operated Voltage | 3.7 V |
| Battery | H-1500MAh Li-ion |
| Battery Life (5-5-90 duty cycle) | About 8 hours |
| Frequency Stability | ± 2.5ppm |
| Antenna Impedance | 50Ω |
| Dimensions (Lx Wx H) | 110x50x32 mm |
| Weight | 170 g (with battery/antenna) 198g |
| Communication Range | about 6km |
| TRANSMITTER | |
| RF Power Output | ≤5W |
| Modulation | F3E |
| Spurious Emission | ≤ 65dB |
| FM Noise | ≤ -45dB(W)≤ -40dB (N) |
| Audio Distortion | ≤ 5% |
| Transmitting Current | ≤ 1.3A |
| RECEIVER | |
| Sensitivity (12dB SINAD) | ≤ 0.20 uV |
| Selectivity | 55dB/50dB |
| Intermodulation | ≥ 65dB |
| Adjacent Channel Selectivity | ≥ 60dB |
| Spurious Response | ≥ 60dB |
| FM Noise | 45dB/40dB |
| Audio Power Output | 1000mW |
| Audio Distortion | ≤ 5% |
| Standby Current | ≈ 15mA ( with battery save on ) |
Package includeds :
1 x Zastone walkie talkie
1 x Rechargeable battery
1 x Detachable antenna
1 x Charger Cradle
1 x Belt clip
1 x Strap
1 x User Manual
Details pictures :
