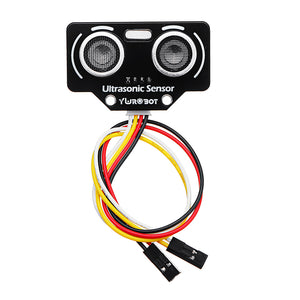

YwRobot Ultrasonic Sensor Ranging Module PH2.0 Interface For Arduino Electronic Building Blocks

YwRobot Ultrasonic Sensor Ranging Module PH2.0 Interface For Arduino Electronic Building Blocks

  • Save R 750
Tax included.
SKU:
Description:

The IO triggers the ranging to give at least 1OUS high level signals.
The module automatically sends 8 40KHZ Fang Bo to automatically detect whether there is a signal return.
The duration of a signal return, a high level output through IO, and a high level duration is the time from emission to return of the ultrasound, and the test distance = (high level x-speed (340M/S)).
Size: 51 x 28mm
Voltage: 5V
Port type: number
Measuring distance: 2-450cm
Blind area: 2cm
Accuracy: 0.3cm
Interface: PH2.0 4P interface

Package Included:

1 x Ultrasonic Sensor Ranging Module
1 x Cable
