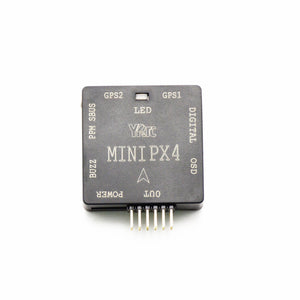

YRRC MINI PIX V6 F4 SMT32f407 Flight Controller Built-in ICM-20689 Gyro MS5607 Barometer for RC Drone

YRRC MINI PIX V6 F4 SMT32f407 Flight Controller Built-in ICM-20689 Gyro MS5607 Barometer for RC Drone

Click Here to buy compatible M8N GPS altogether.

Specification:
Item name: YRRC MINI PIX F4 flight controller
Size(L*W*H): 36*36MM(PCB only )
Weight: 9g(FC Board only)
USB voltage: 5V+-0.4V
PM module input voltage: 5V+-0.4V
Servo input voltage: 5-16V
FC voltage: 5V
Temperature range:  -40-85*c

FMU Processor: SMT32f407(32bit Arm Cortx-M7 168Mhz)
Sensor:
Gyroscope: ICM-20689
Accelerometer: ICM-20689
Barometer: MS5607
Compass: IST8310
Support for three at most, 1 x Compass with built-in, 2x External support two at most.

Interface Type:  CH1.25
GPS UART:                  X2  (Support for Dual GPS)
Telemetry UART:          X2
I2C:                              X1  (extended support)
PWM Output:               X6
RC in signal Input:       PPM/SBUS
Current Voltage Input:  X1
Servo BEC Input:         X1
USB Port:                     X1
SPI Port:                      X1

Power module
BEC  IN 7.5v-55v  OUT 5.2V  2A

Features:
-New official hardware, non V246 version hardware
-New open-source hardware design, Stable sensor(ICM-20689/IST8310 sensor, MS5607 baro)
-100% use Arduploit official firmware, 100% Missionplanner official ground station
-100% support Arduploit compatible various hardware(RTK, GPS)
-Reserve built-in expandable IMU interface, support second IMU module extension
-Support up to 6x PWM signal output, more I/O ports
-Support dual GPS module, double outer compass function, support up to 3 compass redundancy
-Support RC drone, RC car, RC boat, helicopter, fixed wing(including vertical takeoff and landing)

Pacakge included:
1x YRRC MINI PIX F4 flight controller
1x Power module
1x power module connect cable
1x connecting cable
1x buzzer
1x XT60 connector
