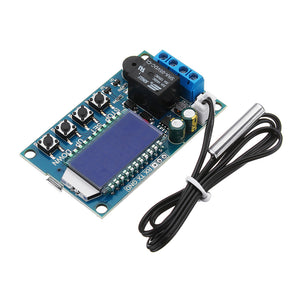

XY-T01 Digital Thermostat Heating Refrigeration Temperature Control Switch Temperature Controller Mo

Product Function:



Set Temperature ---- SetT;

Backlash Temperature-----BackT;

1.  Heating Mode 'H':

When Temperature ≤ SetT - BackT ;Relay conduction, heating equipment begin to work;

When Temperature ≥ SetT, Relay disconnect, heating equipment stop work;

2. Refrigeration mode 'C':

When Temperature ≥ SetT + BackT ;Relay conduction, refrigeration equipment begin to work;

When Temperature ≤ SetT ;Relay conduction, refrigeration equipment stop work;

3. High Temperature Alarm 'ALA':

When Temperature ≥ Alarm Temperature, The system opens the sound and light alarm, and disconnects the relay, any key stops the sound light;

4. Delay Start ‘OPH':

When a normal heating or refrigeration work is done, the system starts to time T, and only after the T≥OPH, the system can carry out the next round of heating or refrigeration work;

5. Temperature Correction Function OFE(-10.0 ~ 10.0°):

The system will work for a long time and may have deviations that can be corrected by this function, Temperature = Measured + Calibration;

6. Parameter Remote Read/Set:

The parameters such as setting temperature, backlash temperature and temperature correction can be set through UART.

7. Real-time Temperature Report:

 If the temperature reporting function is turned on, the product is transmitted to the terminal by the UART at 1s intervals, which facilitates data collection;

8. Relay enable (default enable):

If the relay is disable, the relay remains disconnected;

9. Restore factory Settings:

At the same time press the STOP, set key more than 3S, restore factory settings;



Working mode setting /backlash temperature :



1. In the running interface, short press SET key, enter the Quick setting interface;

2. After entering the Quick Setup interface, switch the parameters

3. Through the UP DOWN key, modify the parameter value, support short press/long press;

4. Long press SET to build more than 3S or continuous 6S without any key operation, exit quickly set the interface, and save parameters;



Alarm temperature/delay Start /temperature correction:



1. In the operating interface, long press SET more than 3s, enter the parameters to set the interface;

2. Enter the parameter to set the interface, through the short press SET key to switch to set the parameters ;

3. through the UP DOWN key, modify the parameter value, support short press/long press;

4. Long press SET 3s above or continuous 6S without any key operation, exit parameter set interface, and save parameters;



How to turn on high temperature alarm (default off):



Enter the parameter setting interface, switch to the alarm parameter ALA , turn on or off the high temperature alarm function by short pressing the STOP button, and if the high temperature alarm function closes, ALA displays '----' as a reminder;



How to turn on delay start (default 0ff):



Enter parameter setting interface, switch to alarm parameter OPH, turn on or off high temperature alarm function by short Press STOP button, if high temperature alarm function closes, OPH show '----' to remind;

Note:

Meaturing  temperature range: -50??to 110??/span>



Package Included:



1 x XY-T01 Digital Thermostat
