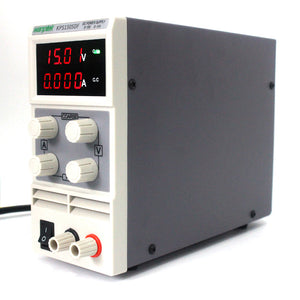

Wanptek KPS1505DF 15V 5A LED Digital Adjustable Switch DC Power Supply MA Display
Tax included.
KPS series is a single set of output, high precision double display switch dc power supply.
Machines have complete operating protection function, with high performance, low ripple, high stability , light weight and small volume etc.
Current limiting protection can make KPS power supply and load against accidental damage.
KPS series power supply with low temperature control circuit, a cooling fan noise is low.
Features:
Features:
1. Have complete operating protection function
2. Highly efficient, low ripple, small volume, light weight
3. Double display voltage, current, and high precision
4. Voltage stabilization, current limiting, simple operation
5. Dual voltage input and convenient choice
6. Temperature control fan heat dissipation, low noise
7. Double potentiometer more precise adjustment
Specification:
Input voltage: AC 110V/220V/50/60Hz
Output voltage: 0 - 15V
Output current: 0 - 5A
Voltage resolution: 0.01V
Current resolution: 0.001A
Power effect: CV1%+10mV
Effect of load: CV1%+10mV
Ripple and noise: Vp-p1%
Voltage display precision: 1%+1digits
Current display precision: 1%+2digits
Net/gross Weight (KG): 1.4/1.7
Volume (mm): 81WX165HX220L
Operating environment: (-10-45) Rh<90%
Package includes:
1 X Main Unit
1 X Power Cord
1 X Output Line
1 X Instruction Book
Details pictures:
