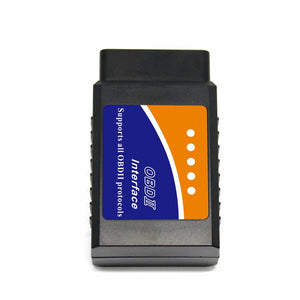

V03H2 Car OBDII Scanner bluetooth 2.0 Auto Tester Diagnostic Tools for Android Windows Symbian
Tax included.
Feature:
Agreement Support:
Specification:
Package Included:
1 X Car OBDII Car Diagnostic Scanner
,,,,,
1. Small volume and highest integrated chip, with independent appearance patent, utility model patent
and software copyright. CE, FCC,
and software copyright. CE, FCC,
RoHS certification
2. The software can do the following:
Read error diagnostic codes - generic and manufacturer specific, and show their meaning (the database
has more than 3000 common code definitions)
has more than 3000 common code definitions)
Clear the error code and close the MIL (" check engine "indicator)
3. Display current sensor data, including:
1. Engine RPM (RPM)
2. The calculated load value
3. Coolant temperature
4. Fuel system status
5. The speed of the car
5. Short-term fuel situation
6. Long-term fuel situation
7. Intake manifold pressure
8. Advance time of oil injection
9. Inlet temperature
10. Air flow velocity
11. Absolute position of throttle valve
12. Oxygen detection voltage associated with short-term fuel state
13. Fuel system status
14. Fuel pressure
15. There are many other data on fuel consumption monitoring...
4. Future features of the software:
1. Data graph display and log
2. Frozen frame data
3. Continuous and discontinuous oxygen detection results
Agreement Support:
OBDII Supported Agreement:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
Specification:
SSID | OBDII |
Communication Methods |
bluetooth 2.0 |
Main Control Chip | PICI8F25K80 |
The Software Platform | Support Android, Windows |
Working Voltage | 9V-16V |
Working Current | 35mA |
Standby Current | 25mA |
Working Temperature | -40??85??/span> |
Working Humidity | <60% |
Size | About 45*25*75MM |
Package Included:
1 X Car OBDII Car Diagnostic Scanner
,,,,,
