Upgraded Version DIY WIFI APP 8x8x8 3D Light Cube Kit Red Blue Green LED MP3 Music Spectrum

Upgraded Version DIY WIFI APP 8x8x8 3D Light Cube Kit Red Blue Green LED MP3 Music Spectrum

  • R 1,612.16
    Unit price per
  • Save R 1,612.16
Tax included.



1. This product does not include housing!! if you need the housing, please purchased separately (Product ID: 1247731).
2. This is a DIY kit, you need to have some knowledge of electronics and ability.
3. Need a lot of soldering, you should have enough patience.
4. 8x8x8 Red, Blue and Green three kinds of lights display version, not RGB LEDs, not single color display, please note!!
5. APP function only supports Android
6. File: Click here to open

The backplane consists of a circuit board and component parts, which require to solder it yourself.

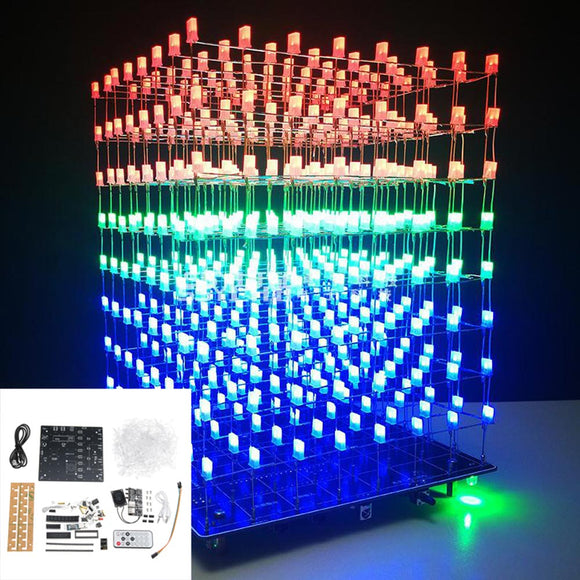

512 pcs RGB LED lights form a square three-dimensional space.
With expanding wifi module, cell phone wireless connection the cube, exclusive APP control operation.
Expanding the Bluetooth music module, the built-in MP3 music function jumps with the music rhythm and presents a very beautiful effect.(Viewing better at night).
Input voltage: 5V
Current: 1A-2A (2A effect is better because of the LED driver chip is APM4953)
Power: 5V phone charger power supply
Circuit board material 1.6 mm RF-4 plate
PCB board size: 150 x 150mm
APP version functions: (support for Android only)
1. Built-in 3W Amplifier+3W speaker
2. Can plug TF memory card to play music
3. Through U disk to play music
4. Through the audio cable input and output music.
5. Built-in MP3 music volume adjustable
6. Built-in music can control Previous and next by button
7. Built-in 45 kinds of offline cool animation (power to run the animation)
8. Built-in 15 kinds of offline dynamic audio animation (with music dancing)
9. 3 D8 PC mode (control animation, which can control lights display)
10. 3 D8 PC music mode
11. Infrared remote control (long distance remote control)
12. Night/day control model
13. PWM breathing light mode
14. Boot motherboard test mode
15. 15 level animation speed adjustment
16. Brightness adjustment of 10 level
17. Change word by the phone (32 patterns, 45 letters)
18. Mobile PC
After the phone connected to the product wifi, you can use the exclusive APP (light cube APP) software to operate. The wifi module has been carefully PCB design and debugging, straight line transmission distance up to 10-20 meters.
Circuit design:
IAP12C5A60S2 + 74HC595 + APM4953 + WIFI + Infrared remote control
1. The integrated IAP12C5A60S2 high-speed 1T microcontroller
2. 5A high current MOS tube driver chip (to solve the uneven brightness)
3. High-speed scanning chip and serial control cascade chip
4. Use WIFI APP Android software control
5. Infrared remote control (Easy to control)

Package included:

1 x DIY 3D Light  cube Kit
