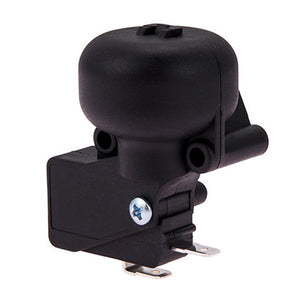

Universal AC 220V 50HZ Anti-dump Switch Black For Patio Heater Garden Outdoor Heater Accessories
Tax included.
Description:
Universal anti-dump switch fits for patio heater, garden outdoor heater accessories.
Specification:
Shell: Black
Teminal: 6.3x0.8mm (Insertion force: 96N, pull out force: 88N)
Steel ball: A3 steel, surface plating treatment
Contact: Silver point
Switch toppling angle: 45°±5°
Switch restoration angle: 20°±5°
Dielectric strength:
Between terminals: 1800v/3s(5mA)
Terminal to housing: 2000v/3s(5mA)
Insulation resistance: >100MΩ
Contact resistance: ≤30MΩ
Mechanical life: >50,000 times(>5E4 cycles)
Electric appliance life:
1)On-off test: AC220V, 50HZ, 16A, 20A(Instantaneous starting current), 12 times on and off per minute, power on time is 1.5s/times, power off time is 3.5s/times, >30,000 times.
2)Constant pressure test: AC220V, 50HZ, 16A, 20A(Instantaneous starting current), disconnect every 50 minutes, ower off time is 3.5s/times, 24-hour continuous energization, >10,000 times.
3)Direct power-on test: AC220V, 50HZ, 16A, 24-hour continuous energization, >10,000 times.
Features:
- The anti-dump switch is a vertical electrical switch.
- When it is tilted, it is turned off and stops.
- It is usually installed at the bottom of the appliance.
Package Included:
1x Anti-dump switch
