Universal 7 Keys V29 V56 V59 TV Switch Keypad Board With Interface
Tax included.
Universal 7 Keys V29 V56 V59 TV Switch Keypad Board With Interface
Description:
Package included:
1 x 7 Keys Keypad Board
Description:

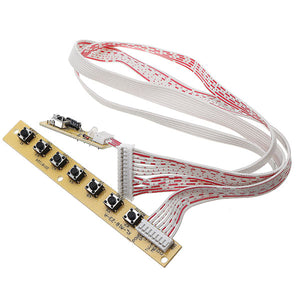

7 Keys Keypad Board, can be directly used in V29 V56 V59 TV driver board , with interface, can be welding infrared receiving head
| PIN | Symbol | Description |
| 1 | + 5 V | + 5 V POWER SUPPLY FOR IR |
| 2 | IR - IN | IR INPUT |
| 3 | GND | GROUND |
| 4 | K0 | POWER |
| 5 | LEDR | RED LED |
| 6 | LEDG | GREEN LED |
| 7 | GND | GROUND |
| 8 | K1 | MANU |
| 9 | K2 | INPUT SOUR |
| 10 | K3 | VOL+ |
| 11 | K4 | VOL- |
| 12 | K5 | CH+ |
| 13 | K6 | CH- |
| 14 | K7 | RESERVED |
Package included:
1 x 7 Keys Keypad Board
