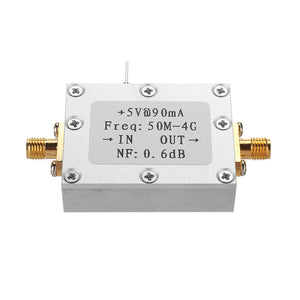

Ultra-low Noise NF0.6dB High Linearity 0.05-4G Wideband Amplifier LNA -110dBm Module
Tax included.
Feature:
1. Supply voltage: typical +5V (typical current value 90mA)
2. Gain: Typical value 18dB@0.9G Input and output impedance: 50 ohms
3. Maximum output power: P1db +22dBm (@2GHz
4. Input signal: <+10dBm (input can be as low as -110dBm, the output signal is distorted when input is greater than +10dBm)
5. Bandwidth: 0.05-4GHZ (the gain is different at different frequencies, please refer to the S21 curve indicator for details)
6. Noise figure: 0.6dB@0.9GHz
Package includes:
1 x Amplifier
