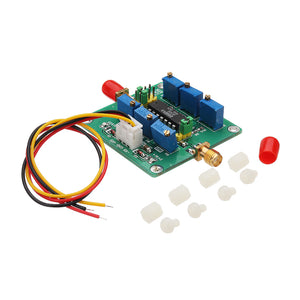

UAF42 Active High Pass Low Pass Bandpass Filtering Frequency Gain Q Adjustable General Filter
UAF42 has the following features:
Highly versatile, can be changed as high pass, low pass, band pass and band stop filters as needed (Jumper settings);
The design is simple. BB has also designed a software specifically for the UAF42, which makes it easy and flexible to design different types of filters.
With high precision frequency and high Q value;
On-chip integrates 1000pF ± 5% of the capacitor.
1. Use ±5 to ±18V power supply anti-power reverse circuit to prevent the power supply from accidentally burning the board
2. Cutoff frequency, center frequency and gain adjustable, Q value adjustable
3. Input can be connected in phase or in reverse.
4. Output through the jumper cap strobe output bandpass, low pass, high pass or filtered to amplify
1 x General Filter
