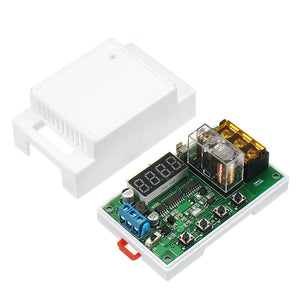

Time Delay Relay Module Control Board DC AC Trigger Cycle Timer Switch Function
Tax included.
Feature:
Model: YYC-2SS 24 kinds of commonly used functions; can control the solenoid valve, water pump, motor, lights, etc.
Input voltage: DC 7 ~ 36V adjustable
Output power: can control the DC within 10A or AC load
Time range: 0.01 seconds ~ 999 minutes adjustable at any time
Terminal Description:
1. AC / DC: Input DC / AC power 7 ~ 36V
2. IN: signal input
3. NO: Normally open relay interface, the relay hanging before pull-in, after pulled shorted connect to COM
4. COM: Relay Common Interface
5. NC: Normally closed relay interface, the relay is shorted connect to COM before pull-in, after pulled hanging
Function list:
P-11: Jog (offer signal to relay pull-in, the signal disappears, the relay stop)
P-12: Self-locking (offer signal to pull, give a signal again to stop relay)
P-13: Offer signal, the relay will stop automatically for A second; trigger will be invalid during the delay time
P-14: Offer signal, the relay will stop automatically for A second; trigger re-timing during the delay time
P-15: Offer signal, the relay will stop automatically for A second; trigger superimposed during the delay time
P-16: Offer signal, the relay will stop automatically for A second; trigger reset during the delay time
P-17: Offer signal, relay pull-in, input signal is disconnected, start counting time after A second power off, during the delay period offer signal again to keep output, timing stop
P-18: When power is on, the relay will pull in immediately and power will be off after A second delay; until the next power-on
P-21: Offer signal, delay A seconds, the relay pull
P-22: Offer signal, more than A seconds, the relay pull, the signal disappears, the relay stops
P-23: After the signal disappears for more than A second, the relay will be closed, the signal will disappear and the relay will stop
P-24: When the signal exceeds A second, the relay will be closed and the relay will stop after the signal disappears for more than A seconds
P-25: When the signal exceeds A second, the relay will pull in. If the signal exceeds A seconds again, the relay will stop
P-26: When the signal pull exceeds A second and stop, signal disappear and relay pull again, after A second stop
P-27: Detection of pulse signal, the relay stops; no pulse signal, the relay delay A seconds then pull; (continuous signal or signal disappear are regarded as no pulse signal)
P-28: After power on, after a second delay, the relay will be pulled until it is powered off
