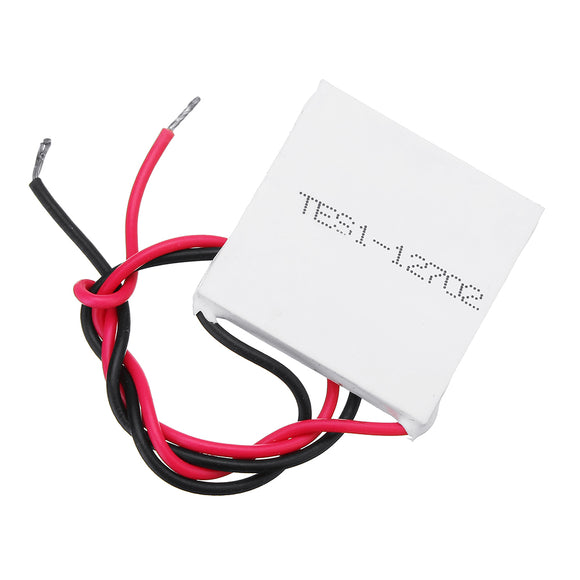

TES1-12702 12V 25x25MM Small Thermoelectric Cooler Peltier Refrigeration Plate

Tax included.

Description:

Chip model: TES1-12702

Dimensions: 25*25*3.4mm Component logarithm 71

Wire size: lead length 80mm ± 8mm RV standard wire single head 5mm tinned
Internal resistance: 5.8~6.2Ω (ambient temperature 23±1°C, 1KHz Ac test)

Maximum temperature difference: Above 65°C

Working current: Imax=2A

Rated voltage: Vmax: 15.5V

Assembly pressure: 85N/cm2

Working environment: temperature range -55 ° C ~ 83 ° C

(excessive ambient temperature drop directly affects cooling efficiency)

Packaging process: around with standard 704 silicone rubber seal

Storage conditions: -40 ° C ~ 60 ° C

Note:

There is a literal surface for the cooling surface, and no literal surface is the cooling surface.

A heat sink or water-cooled must be installed on the heat sink surface, otherwise, it will burn out.

(Please coating thermal silica gel regardless of water cooling or air cooling)

Package included:

1 x TES1-12702 12V 25x25MM Small Thermoelectric Cooler Peltier Refrigeration Plate
