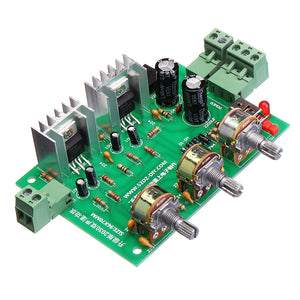

TDA2030A 2.0 Audio Amplifier Module Board 18Wx2 Dule Channel 9-12V
Tax included.
Features:
This circuit consists of two channels, including W101 as the volume potentiometer, W102 bass adjust potentiometer, W103 for high adjust potentiometer.
The input audio signal after the volume and tone control by the C106, C206 sent to TDA2030 integrated audio power amplifier.
Specification:
Working voltage: AC/DC 9 - 12V
Output power: Left and right channel 18 w x2 (horn)
Output impedance: 4-8Ω
PCB size: 12 x 5.5 cm(L*W)
Package includes:
1 x TDA2030A 2.0 Audio Amplifier Module
