T.RD8503.03 Universal LED TV Controller LCD Driver Board TV/PC/VGA/HDMI/USB 2ch 8bit 30pins
Tax included.
Model: T.RD8503.03
Tuner: RDA5160
Scheme of the chip: 8503
TV Format: Analog Signal
Support Language: Russian, English, Hindi, Simplified Chinese, Khmer, Vietnamese, Myanmar, French, German, Italian, Spanish.
Input Interface: PC / HDMI / TV / AV / USB multimedia playing
Power Adapter: DC 12V 3-5A
Screen interface: LVDS Double 8
Screen voltage: 3.3V / 5V / 12V (Jump cap)
Resolution: Support high screen 1920 * 1080, 8.9-42 inch LVDS screen (support most of the panels, but not all)
Not only USB interface can be used to upgrade programs, but also can use to play video/music/photo, basically, formats are supported. You can also set a boot display pictures or LOGO and Mirror Enable.
How to know if your panel suitable for this board?
Step 1: Find your LCD model's resolution (you can check the resolution from this link: http://www.panelook.com/index.php)
Step 2: Find and write in the corresponding firmware.
You can download the firmware from here: http://myosuploads3.banggood.com/products/20181221/20181221022350DANGKOURR52C04A.rar
How to know if your panel suitable for this board?
Step 1: Find your LCD model's resolution (you can check the resolution from this link: http://www.panelook.com/index.php)
Step 2: Find and write in the corresponding firmware.
You can download the firmware from here: http://myosuploads3.banggood.com/products/20181221/20181221022350DANGKOURR52C04A.rar
Programming:
1. Put the firmware of "SKR8503_100.bin" in formatted USB flash disk(FAT32), then insert the USB disk and the 7KEY-Button to the board
2. After turn on the power, the light of the 7key button be Red then flash red faster.
IT KEEPS flashing and NEVER STOP. it's normal, just wait about 1 minute, it means upgrade has finished. then power off and pull off the u-disk. (Note that write programs do not power outages, crashing won't be able to use)

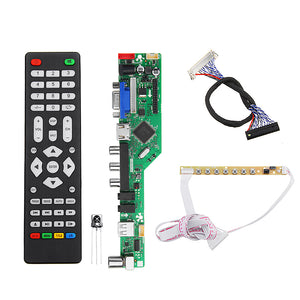

Package included:
1 x Controller Board
1 x English Remote control
1 x IR
1 x 7 key button
1 x 2ch 8bit 30pins lvds cable 250mm length (You can replace the screen line as needed.)
Note:
The IR & KEY definition is special and different between v29 v56 v59 and 3463A, pls notice and don't mix up.
The IR & KEY definition is special and different between v29 v56 v59 and 3463A, pls notice and don't mix up.
This kit is just for signal interface is 2ch 8 bit 30 pins and without 4pcs ccfl inverter
If you are not sure, pls provide your lcd panel model number to us so we can help you, thanks
