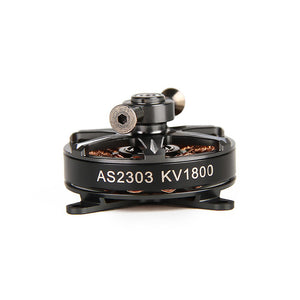

T-MOTOR AS2303 2303 Long Shaft 1500KV KV1500/1800KV KV1800/2300KV KV2300 3S-4S Brushless Motor for Fixed Wing RC Drone Aircraft

T-MOTOR AS2303 2303 Long Shaft 1500KV KV1500/1800KV KV1800/2300KV KV2300 3S-4S Brushless Motor for Fixed Wing RC Drone Aircraft

  • Save R 925.64
Tax included.
SKU:
T-MOTOR AS2303 2303 Long Shaft 1500KV KV1500/1800KV KV1800/2300KV KV2300 3S-4S Brushless Motor for Fixed Wing RC Drone Aircraft


Description
Brand Name: T-Motor
Model : AS2303

AS2303 Specification
Motor Size short shaft �ｿ?8*16.5mm Centrifugal heat dissipation ON
Stator Resistance to 150??high temperature coating Rotor dynamic balance standard <5Mg
Slot-pole 12N14P Motor overall dynamic balance standard <10Mg
Motor shaft diameter IN:4mm, OUT:3mm Dustproof waterproof level IP35
Shaft Model 684ZZ Bearing Other Accessories O Type ring 2.0*20mm*2
Magnet Level Resistance to 150??high temperature Cross round head self tapping screwM2*5mm*4
Silicone Type Enamelled wire leads out 40mm Aluminum adapter ring 10*5.5*7*2.5mm*1
Insulation Level of Enameled Wire Resistance to 220??high temperature Aluminum adapter ring 10*5.5*8*2.5mm*1
Coil Insulator Test 500V high-voltage insulation test

KV 1500KV Rated Voltage 2-3S
Non-load current(10V) 0.3A Recommanded ESC 20A
Max.Current(A)180S 10A Recommanded Prop 8040/9050/1060
Max. Power (W)180S 108W/3S Weight (with wire) 17g
Resistance(with wire) 251 milli-ohm Package Weight 50g

KV 1800KV Rated Voltage 2-3S
Non-load current(10V) 0.5A Recommanded ESC 20-25A
Max.Current(A)180S 10A Recommanded Prop 7035/8040/9050
Max. Power (W)180S 67W/2S Weight (with wire) 17g
Resistance(with wire) 236 milli-ohm Package Weight 50g


KV 2300KV Rated Voltage 2-3S
Non-load current(10V) 0.75A Recommanded ESC 30A
Max.Current(A)180S 25A Recommanded Prop 7035/8040/9050
Max. Power (W)180S 62W/2S Weight (with wire) 17g
Resistance(with wire) 122 milli-ohm Package Weight 50g


Pakcage Included
1 x T-Motor AS2303 Motor

Tested Data
Item No. Prop Throttle Voltage
(V)		 Current
(A)		   RPM Torque(N*m)   Thrust
(G)		   Efficiency
(G/W)		 Operating Temperature( ??
  GWS 8040 40% 11.47 1.17 13.43 5665 0.015 9.02 131.28 67.22 9.779 68??/td>
45% 11.47 1.53 17.55 5966 0.017 10.77 155.94 61.37 8.885
50% 11.46 2.07 23.72 6205 0.020 13.28 192.47 55.97 8.113
55% 11.45 2.70 30.91 6718 0.024 16.87 230.37 54.57 7.453
60% 11.44 3.40 38.91 7186 0.028 21.28 266.69 54.68 6.855
65% 11.42 4.09 46.70 7610 0.032 25.34 296.68 54.27 6.352
70% 11.41 4.91 56.04 8068 0.036 30.16 333.84 53.83 5.957
75% 11.43 5.91 67.51 8577 0.040 36.29 372.58 53.75 5.519
80% 11.70 7.02 82.11 9042 0.046 43.22 419.83 52.63 5.113
90% 11.72 9.13 106.99 9666 0.053 53.22 484.62 49.74 4.529
100% 11.73 9.20 107.98 9617 0.052 52.46 480.61 48.59 4.451
AS2303-KV1500 GWS 9050 40% 7.48 0.73 5.45 3217 0.011 3.77 82.60 69.16 15.170 57??/td>
45% 7.46 1.08 8.04 3541 0.014 5.03 101.23 62.61 12.593
50% 7.46 1.46 10.87 3871 0.017 6.72 124.84 61.80 11.484
55% 7.45 1.96 14.61 4210 0.019 8.55 147.15 58.51 10.070
60% 7.44 2.56 19.03 4518 0.023 10.78 170.61 56.66 8.966
65% 7.47 3.21 24.02 4834 0.025 12.89 194.97 53.70 8.120
70% 7.73 4.04 31.26 5211 0.030 16.42 232.71 52.51 7.444
75% 7.79 4.83 37.58 5522 0.033 19.24 261.49 51.21 6.959
80% 7.78 5.67 44.08 5739 0.036 21.83 286.83 49.51 6.506
90% 7.81 7.46 58.25 6221 0.044 28.43 339.38 48.80 5.826
100% 7.78 7.55 58.77 6234 0.043 27.90 338.00 47.47 5.751
  GWS 1060 40% 7.47 0.94 7.04 2554 0.014 3.82 91.51 54.31 12.997 69??/td>
45% 7.46 1.37 10.23 2844 0.016 4.88 104.33 47.71 10.210
50% 7.45 1.91 14.27 3151 0.021 6.92 135.78 48.52 9.518
55% 7.44 2.56 19.04 3412 0.025 8.76 159.43 46.05 8.376
60% 7.52 3.18 23.92 3710 0.029 11.08 186.36 46.32 7.792
65% 7.74 4.20 32.50 3978 0.034 13.99 221.29 43.03 6.809
70% 7.75 5.00 38.80 4215 0.038 16.96 244.24 43.71 6.295
75% 7.77 6.00 46.59 4444 0.043 20.15 278.66 43.25 5.982
80% 7.80 6.90 53.79 4609 0.046 22.36 301.94 41.58 5.614
90% 7.77 8.68 67.46 4919 0.053 27.09 333.98 40.16 4.951
100% 7.75 8.64 67.02 4873 0.051 26.26 328.65 39.18 4.904
Notes:The test condition of temperature is motor surface temperature in 100% throttle while the motor run 3 min.
Item No. Prop Throttle Voltage
(V)		 Current
(A)		   RPM Torque(N*m)   Thrust
(G)		   Efficiency
(G/W)		 Operating Temperature( ??
AS2303-KV1800 GWS 8040 40% 7.68 1.04 7.99 4342 0.011 5.21 94.19 65.27 11.794 67??/td>
45% 7.58 1.28 9.74 4629 0.013 6.32 109.95 64.82 11.286
50% 7.51 1.64 12.35 4974 0.015 7.92 124.62 64.10 10.090
55% 7.57 2.15 16.27 5409 0.018 9.97 147.39 61.25 9.057
60% 7.51 2.66 19.99 5784 0.020 12.26 170.16 61.33 8.511
65% 7.49 3.25 24.35 6153 0.023 15.01 195.98 61.66 8.050
70% 7.46 3.92 29.22 6524 0.026 17.65 222.69 60.42 7.621
75% 7.43 4.71 35.02 6936 0.029 21.25 251.11 60.69 7.170
80% 7.39 5.46 40.34 7244 0.032 24.09 273.33 59.72 6.776
90% 7.28 7.10 51.66 7835 0.037 30.26 319.96 58.57 6.193
100% 7.23 7.26 52.52 7880 0.037 30.52 319.73 58.10 6.087
GWS 9050 40% 7.60 1.19 9.03 3454 0.014 5.03 96.89 55.69 10.733 56??/td>
45% 7.58 1.65 12.49 3784 0.017 6.56 118.72 52.53 9.510
50% 7.60 2.21 16.82 4140 0.020 8.78 144.78 52.19 8.608
55% 7.59 2.96 22.42 4494 0.024 11.18 174.81 49.89 7.797
60% 7.51 3.67 27.58 4783 0.027 13.64 199.27 49.46 7.225
65% 7.44 4.43 32.95 5076 0.030 16.11 223.55 48.90 6.785
70% 7.40 5.33 39.45 5320 0.034 18.89 249.01 47.88 6.312
75% 7.33 6.21 45.48 5574 0.037 21.66 274.42 47.63 6.034
80% 7.26 7.09 51.46 5776 0.040 24.14 294.74 46.91 5.727
90% 7.13 9.00 64.15 6130 0.045 28.99 336.04 45.19 5.238
100% 7.15 9.17 65.59 6158 0.045 29.08 334.44 44.35 5.100
Notes:The test condition of temperature is motor surface temperature in 100% throttle while the motor run 3min.

Item No. Prop Throttle Voltage
(V)		 Current
(A)		   RPM Torque(N*m)   Thrust
(G)		   Efficiency
(G/W)		 Operating Temperature( ??
AS2303- KV2300 GWS 7035 40% 7.52 1.64 12.30 7064 0.011 8.12 100.48 65.96 8.167 74??/td>
45% 7.54 2.06 15.56 7611 0.013 10.25 118.51 65.88 7.614
50% 7.51 2.45 18.43 8135 0.014 12.13 134.39 65.82 7.291
55% 7.46 2.84 21.17 8504 0.016 13.94 151.03 65.87 7.134
60% 7.47 3.23 24.10 8873 0.017 15.74 167.07 65.31 6.933
65% 7.48 3.77 28.21 9382 0.019 18.76 188.64 66.50 6.687
70% 7.43 4.41 32.77 9869 0.021 21.96 211.93 67.03 6.468
75% 7.40 5.28 39.09 10479 0.024 26.30 242.78 67.28 6.211
80% 7.33 6.09 44.60 11032 0.026 30.47 268.06 68.32 6.010
90% 7.19 8.10 58.25 12023 0.031 39.53 324.90 67.85 5.578
100% 7.18 8.40 60.32 12186 0.032 41.10 330.93 68.14 5.487
Notes:The test condition of temperature is motor surface temperature in 100% throttle while the motor run 3min.
