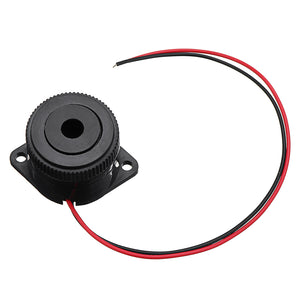

Spiral Piezo Buzzer 12V Electronic Horn 24V High Decibel Buzzer
Tax included.
Description:
Drive method: Piezoelectric (crystal)
Active or not: Active
Material: ABS
Size: 29*25(mm)
Number of channels: two channels (stereo)
Package included:
1 x Spiral Piezo Buzzer
Drive method: Piezoelectric (crystal)
Active or not: Active
Material: ABS
Size: 29*25(mm)
Number of channels: two channels (stereo)
| Model | buzzer | ||||
| Sound-making type | Intermittent sound | Continuous sound | Music sound | Alarm sound | Fire sound |
| Rated volatge | DC6-24V | DC6-24V | DC6-24V | DC6-24V | DC6-24V |
| Operation voltage | DC6-24V | DC6-24V | DC6-24V | DC6-24V | DC6-24V |
| Rated current | 40mA | 50mA | 60mA | 60mA | 60mA |
| Sound pressure level(Dba/10cm) | 105db | 110db | 110db | 110db | 110db |
| Resonant frequency(Hz) | 2800±300 | 3300±300 | 2800±300 | 2500±300 | 2500±300 |
| Weight(g) | 22 | 22 | 22 | 22 | 22 |
| Operation temperture | -20~80??/span> | -20~80??/span> | -20~80??/span> | -20~80??/span> | -20~80??/span> |
Package included:
1 x Spiral Piezo Buzzer
