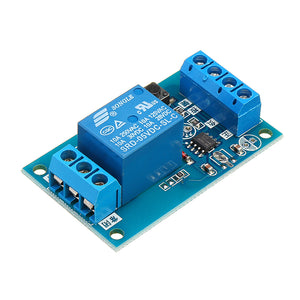

Single-key Bistable Relay Module Refit Switch Starts and Stops with One Key Low Level Control

Description:



By pressing the button on the board or the external button, the relay module can be sucked or disconnected. Press the suction button and then press the disconnection button. The button is triggered by low level. The relay is disconnected when the power is restarted.



The maximum working current of the secondary output terminal of the relay is 10A, that is to say, the maximum working current of the controlled circuit or equipment can not be greater than 10A, which is connected to the normal starting or closing end according to its own needs.



The welding position of the external suction indicator is reserved, and the suction indicator is welded on the board.



Single-bond two-steady-state relay module, the positive and negative connections of the power supply will burn out, there is no power connection protection.



Low-level control is a trigger signal when the signal line touches the ground.

Module size: length x width x height = 52.8mm x 32mm x 18mm



Package Included:

1 x Single-key Bistable Relay Module
