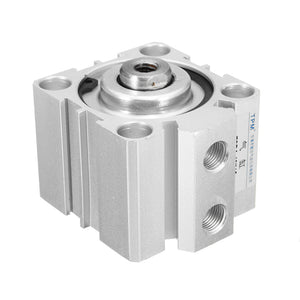

SDA40x15 40mm Bore 15mm Stroke Double Acting Pneumatic Air Cylinder

SDA40x15 40mm Bore 15mm Stroke Double Acting Pneumatic Air Cylinder

  • R 940.50
    Unit price per
  • Save R 940.50
Tax included.


SDA40X15 Dual Action Air Pneumatic Cylinder SDA40x15 40mm Bore mm Stroke Double Acting Pneumatic Air Cylinder


Product Name Air Cylinder
Model SDA40x30
Action Type Double Action
Material Aluminum Alloy
Bore 40mm
Stroke 15mm
Max Presssure 1MPA
Rod Diameter 16mm
Rod Thread Diameter M14X1.5
Air Hole Diameter 1/8
Overall Size(Approx) 50x58x55
Quantity 1pc

1. Riveted structure is adopted to connect the cylinder body and back cover, and piston and piston rod to make it compact and reliable.
2. The inner diameter of the bidy is treated with rolling followed by the treatment of hard anodizing, forming an excellet abrasion resistance and durability.
3. The seal of piston adopts heterogeneous two-way seal structure. It has compact dimension and the function of grease reservation.
4. Compact structure can effectively save installation space.
5. There are magnetic switch slots around the cylinder body, which is convenient to install sensor switch.
6. Mounting accessories with various specifications are optical.

1. Please allow a bit error due to manual measurement. please make sure you do not mind before you bid.
2. The color may have different as the difference display, pls understand.
Package Included:
1pcs x SDA40x15 Air Cylinder
