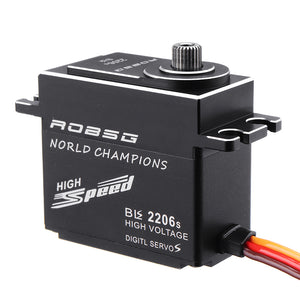

ROBSG BLS2206S 25KG Brushless Waterproof Metal Gear Digital Servo For 1/8 1/10 RC Car 600-700 Class RC Helicopter

DESCRIPTION:

Brand: ROBSG

Product: BLS2206S Digital Servo

Gear: Steel gear

Spline: 25T

Motor: Brushless motor

Bearing: 2BB

Dead band: 2μs default

Waterproof: Yes

Operating Voltage: DC5.0~8.4V

Working frequence: 1520μs/330hz



FEATURE:

-High performance, standard,Multivoltage digital servo

-High-precision 7075 aluminium gear

-Long-life potentiometer

-Full CNC aluminium case

-High quality brushless motor

-Dual ball bearing

-Waterproof

-Suit for 1/8, 1/10 fuel car, 600-700 class helicopter CCPM



SPECIFICATIONS:

Operating Speed (5.0V): 0.09sec/60 degrees

Operating Speed (6.0V): 0.07sec/60 degrees

Operating Speed (7.4V): 0.06sec/60 degrees

Operating Speed (8.4V): 0.05sec/60 degrees

Stall Torque (5.0V): 17.7kg.cm (245.86oz/in)

Stall Torque (6.0V): 19.8kg.cm (275.02oz/in)

Stall Torque (7.4V): 22kg.cm (305.58oz/in)

Stall Torque (8.4V): 25kg.cm (347.25oz/in)

Dimensions: 40X20X40.9mm /1.56X0.78X1.6in

Weight: 69g (2.43oz)

Connector Wire Length: 300mm (11.8in)



Package:

1* ROBSG BLS2206S Digital Servo
