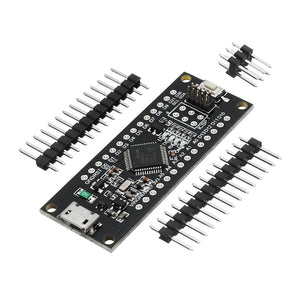

Robotdyn SAMD21 M0-Mini 32 Bit ARM Cortex M0 Core 48 MHz Development Board For Arduino

Robotdyn SAMD21 M0-Mini 32 Bit ARM Cortex M0 Core 48 MHz Development Board For Arduino

  • R 721.72
    Unit price per
  • Save R 721.72
Tax included.

SKU:


Technical Parameters:

Microcontroller ATSAMD21G18 48pins LQFP
USB-TTL converter SAMD21 MCU
Power Out 3.3V-800mA
Power IN. USB 5V
Power IN. VIN/DC Jack 5V
Power Consumption 3.3V 220mA
Logic Level 3.3V
USB Micro USB
Clock Frequency 48MHz
Operating Supply Voltage 3.3V
Digital I/O 20(7-PWM)
Analog I/O 6
Data RAM Type/Size 20Kb
Data ROM Type/Size 128Kb
Interface Type ISP
Operating temperature −40��°/+85��°
Length×Width 56.5×18mm

Feature:

The RobotDyn SAMD21 M0-Mini represents a powerful, 32-bit extension of the Ard-uino U NO platform, but to small size like Micro or Nano. The board is powered by At mel’s SAMD21 MCU, featuring a 32-bit ARM Cortex® M0 core.
The SAMD21 M0-Mini board expands the family by providing increased performance, enabling a variety of project opportunities for devices, and acts as a great educational tool for learning about 32-bit application development.
The Z ero applications span from smart IoT devices, wearable technology, high-tech automation, to crazy robotics. The board is powered by Atmel’s SAMD21 MCU, which features a 32-bit ARM Cortex® M0+ core. One of its most important features is Atmel’s Embedded Debugger (EDBG), which provides a full debug interface without the need for additional hardware, significantly increasing the ease-of-use for software debugging. EDBG also supports a virtual COM port that can be used for device and bootloader programming.
* Pin-headers is not soldered.

Package includes:

1 x Module
