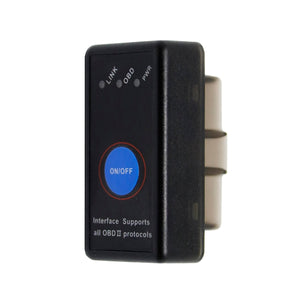

OBDII B20 V1.5 Scan Tool bluetooth 4.0 Scanner
Tax included.
Specification:
bluetooth version | bluetooth 4.0(with turn on/off button) |
Chipset | ST |
Software platform | Android/Windows/iOS |
Working voltage | 9V-16V |
Working current | 35mA |
Standby current | 25mA |
Working temperature | -40??to 85??/span> |
Working humidity | Less than 60% |
Dimension | 52*27.4*15CM |
The supporting protocol:
1.SAE J1850 PWM(41.6 Kbaud)
2.SAE J1850 VPW(10.4 Kbaud)
3.ISO9141-2(5 baud init,10.4 Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
Compatible Sofrware:
Window:ScanMaster-ELM,ScanTool.net,PCMSCAN etc.
Android:Torque,DashCommand,OBD Car Doctor,Auto Doctor,
Mini OBDII,EOBD etc.
iOS:Auto Doctor,Mini OBDII
Symbian:OBDScope
Compatible Platform:
Windows XP,Windows 7/8.Android,Symbian
Package Included:
1 X OBDII Scan Tool
1 X Mount
,,,,,
