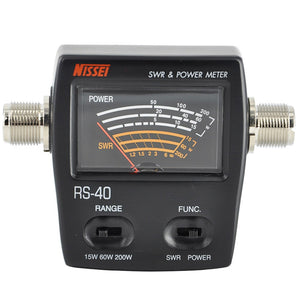

NISSEI RS-40 Power SWR Meter Measurable Range 200W for Two Way Radio with Adapter Connector
Tax included.
Description:
NISSEI RS-40 SWR/POWER meters are of the highest quality. Measurement accuracy is between +/- 5 to 10% depending on model. Insertion loss is typically less than 0.3 dB or lower.
NISSEI RS-40 SWR/POWER meters are of the highest quality. Measurement accuracy is between +/- 5 to 10% depending on model. Insertion loss is typically less than 0.3 dB or lower.
This SWR/Watt meter is a campact size for measuring Forward Power, and VSWR.
RS-40 SWR & Power Meter can read out directly without any calibration.Low insertion loss structure allows it to be connected permanently.
Specification:
Model: RS-40
Frequency Range: 140-150MHz,430-450MHz
Measurable Power Range: 0-200W
Power Scale: 15W,60W,200W
Maximum Power: 200W
Accuracy-10W Range: (AVG) +/- 10%
Accuracy -100/1000W Range: (AVG) +/- 5%
Min.Power(Fwd) Measured:1W
Input/Output Connector: MJ-MJ (BNC,N Optional)
Insertion Loss: 0.3dB or Lower
Testing Function: Forward,SWR
Input/Output Impedance: 50 OHM
Dimension(W/H/D)mm: 70 x 78 x 30
Weight(Net): 180g
Package Included:
1 x Brand New NISSEI RS-40 SWR & Power Meter
