MKS-GEN L V1.0 Integrated Controller Mainboard + 5pcs DRV8825 Stepper Motor Driver For 3D Printer
Tax included.
MKS-Gen L Mainboard
Overview:
Aiming at the problems exist on the open sourced controller board such as Ramps 1.4, the developers in Makerbase specially optimize and develop a new product, MKS-Gen L, which provides more flexible choices for users.
Features:
1. 2560 and Ramps 1.4 are integrated in the board, which avoids the complicated connectors.
2. Support a variety of stepper drivers such as A4988, DRV8825, TMC2100 and LV8729, available to change the stepper drivers and motors as users like.
3. Reserve external driver signal, available to connect external high-current driver to drive the 57 and 86 stepper motors.
4. Use high-quality MOSFET, better cooling and more stable.
5. Use specific power chip, support 12V-24V power input, and resolve the problems of chip heating and power shortage.
6. Stable and reliable filter circuit greatly reduces interference and avoids crashes as possible in the process of printing.
7. Use CH340 serial port chip, more easily install the drive than 16U2.
8. Run Marlin firmware, the configuration is completely same as Ramps 1.4, and available to directly replace the Ramps 1.4.
9. Support Ramps 1.4, 2004LCD,12864LCD, TFT28 and TFT32.
10. Available to input 24V, the heated bed current can be reduced to 1/4 at the same system power which effectively resolves the problem that the MOSFET of heated bed heats.
11. X axis, Y axis and Z axis with different color terminal controls the stepper motors and endstops, which is convenient to wire.
12. Plug the stepper drivers according to the different color terminals which decreases the probability of reverse and prevents the controller board damage.
DRV8825
Features:
1. 4 layer PCB plate, the heat dissipation performance is better.
2. The chip has smaller internal resistance, lower heating and better heat dissipation.
Specification:
Model: DRV8825
Type: step motor driver
Size: approx.15mmx20mm/0.59x0.78''
Drive current: maximum 2.5A
Subdivision: 1, 1/2, 1/4, 1/8, 1/16, 1/32
Package Included:

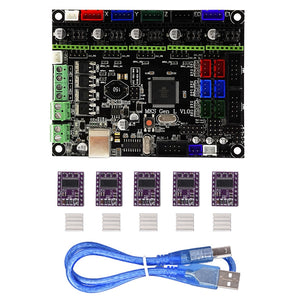

1x MKS-Gen L V1.0 board
1x 50cm USB cable
5x DRV8825 Stepper Motor Driver
5x Heatsink
Overview:
Aiming at the problems exist on the open sourced controller board such as Ramps 1.4, the developers in Makerbase specially optimize and develop a new product, MKS-Gen L, which provides more flexible choices for users.
Features:
1. 2560 and Ramps 1.4 are integrated in the board, which avoids the complicated connectors.
2. Support a variety of stepper drivers such as A4988, DRV8825, TMC2100 and LV8729, available to change the stepper drivers and motors as users like.
3. Reserve external driver signal, available to connect external high-current driver to drive the 57 and 86 stepper motors.
4. Use high-quality MOSFET, better cooling and more stable.
5. Use specific power chip, support 12V-24V power input, and resolve the problems of chip heating and power shortage.
6. Stable and reliable filter circuit greatly reduces interference and avoids crashes as possible in the process of printing.
7. Use CH340 serial port chip, more easily install the drive than 16U2.
8. Run Marlin firmware, the configuration is completely same as Ramps 1.4, and available to directly replace the Ramps 1.4.
9. Support Ramps 1.4, 2004LCD,12864LCD, TFT28 and TFT32.
10. Available to input 24V, the heated bed current can be reduced to 1/4 at the same system power which effectively resolves the problem that the MOSFET of heated bed heats.
11. X axis, Y axis and Z axis with different color terminal controls the stepper motors and endstops, which is convenient to wire.
12. Plug the stepper drivers according to the different color terminals which decreases the probability of reverse and prevents the controller board damage.
DRV8825
Features:
1. 4 layer PCB plate, the heat dissipation performance is better.
2. The chip has smaller internal resistance, lower heating and better heat dissipation.
Specification:
Model: DRV8825
Type: step motor driver
Size: approx.15mmx20mm/0.59x0.78''
Drive current: maximum 2.5A
Subdivision: 1, 1/2, 1/4, 1/8, 1/16, 1/32
Package Included:
1x MKS-Gen L V1.0 board
1x 50cm USB cable
5x DRV8825 Stepper Motor Driver
5x Heatsink
System connection diagram:
Installation Dimensional Drawing:
PIN port map:
