JZ-TS24 2.4 inch Full Color LCD Touch Display Screen

R 1,600.56
Unit price per
Save R 1,600.56

Tax included.

Specifiactions:

Model: JZ-TS24

Color: 262K color

Display size: 2.4 inch

Touch screen type: Resistive touch screen

Resolution: 320*240 px

Appearance size: 80*60*15mm
Can work for:

1. Ardniuo Mega2560+ramps1.4 or integrated board based on 2560 development

(such as MK S-Gen/Base mainboard, Micromake mainboard, Ramps Plus2 mainboard)

2. 32-bit main control board: Ardniuo Due+ramps-FD open source mainboard

Product features:

1. Power off: after printing completed, nozzle cooling down, shut down automatically(with expansion module).

2. Speed optimization: smooth to print complex models at high speed printing

3. Extended SD-card: screen with SD slot, which can also be external expansion. Installation direction and location is unlimited (expansion module).

4. History record: fast search for printed documents

5. File Topping: GCODE Files with the latest slices will be top in the file list.

6 One reset: press the screen reset key, and reset the motherboard together.

7. Convenient shunting: computer-free shunting, brush-free firmware modification parameters (pulse, speed, acceleration, etc.)

8. Dual-extruder printing support: yes

9. leveling support: yes

10. Limit switch status monitoring support: yes

11. Temperature control curve support: yes

12. Customized instruction menu support: yes

13. Gcode command-line support: yes

14. Modify machine parameters: support Marlin

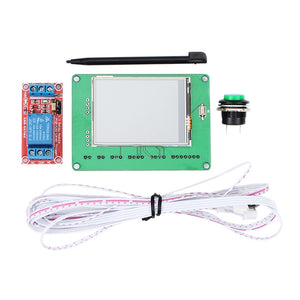

Package Included:

1x JZ-TS24 touch screen
1x Touch pen
1x Power Resume module
1x Screen knob
1x Pin cable
