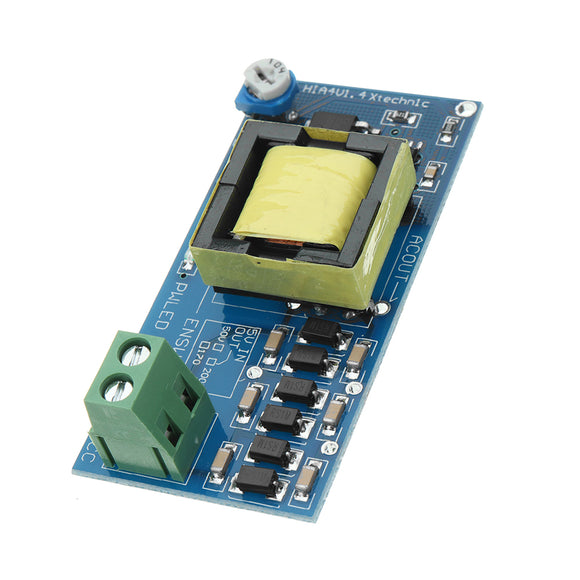

High Voltage DC-DC 2mA To 20mA Boost Converter  Input 5V Output 280V-1200V

High Voltage DC-DC 2mA To 20mA Boost Converter Input 5V Output 280V-1200V

  • R 750.00
    Unit price per
  • Save R 750
Tax included.

SKU:

Features:

Support for multiple voltage DC output when 5V input
Size: about 48*25mm (length*width)
Output current: 2~20mA (if you want to add current, please put insurance below the transformer replaced the 0-ohm resistor, maximum 50mA, but does not recommend increased.)
When the input voltage is 5V, the output voltage can be adjusted in 280~1200V.
When the input voltage is 6~12V, the output voltage can be adjusted in 400~1200V.

Notes:

1. The capacitor can be charged, but charging speed is somewhat slow.
2. As the module power output module, it is not possible for the sensor.
3. Corresponding products description: this module is used on security products, stability is fairly good.
4. This module with AC output, the output about AC 75V, but can't be adjusted.

Product test pattern:

New products output are generally stable, of course, if you test the output voltage is unstable, you can add a limiting current resistor for testing, usually this problem does not occur.

Package included:

1 X High voltage DC-DC boost converter
