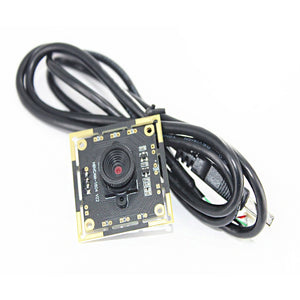

HBVCAM-1804 V22 30FPS Camera Module CMOS BF3005 0.3MP USB2.0 Camera Module 55 Degree with UVC Protocol Free Driver
Tax included.
Specifications:
| Model No. | HBVCAM-1804 V22 |
| Model Size | PCB:38mm ? 38mm ?13MM |
| Sensor | BF3005 |
| Resolution | 640*480 |
| Optical Format | 1/4'' inch |
| Pixel Size | 6.0um*6.0um |
| Active pixel array | 640*480 |
| Sensitivity | 10V/lux-sec |
| SNR MAX | 45 dB |
| Max Dynamic range | 65 dB |
| Operating temperature | ??0°C to +85°C ambient |
| Object distance | 30-infinity |
| Interface | 4PIN USB2.0 |
| DFOV | 67degree |
| HFOV | 54degree |
| VFOV | 41degree |
| Operating system | Free driver for Windows 2000 Windows XPWindows 7 / Linux and Android system with Standard UVC Protocol |
| Video Format | MJPG |
| Format output and FPS | 1280*720(default) 30fps |
| 160*120 30fps 176*144 30fps | |
| 320*240 30fps 352*288 30fps | |
| 640*480 30fps 1280*960 1fps | |
| 800*600 30fps | |
| Video Format | YUY2 |
| Format output and FPS | 1280*720(default) 30fps |
| 160*120 30fps 176*144 30fps | |
| 320*240 30fps 352*288 30fps | |
| 640*480 30fps 1280*960 1fps | |
| 800*600 30fps | |
| Automatic white balance | ??/td> |
| Exposure | ??/td> |
| Focus | Fixed Focus |
| USB cable | 40CM |
Package Included:
1 x HBVCAM-1804 V22 30FPS Camera Module
1 x 40cm USB Cable
