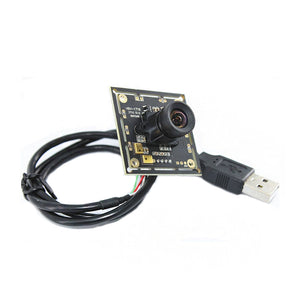

HBV-1716HD 2MP OV2710 HD 1080P CMOS Camera Module with USB Interface Free Driver Fixed Focus 100 Degree
Tax included.
Specifications:
| Model No. | HBV-1716HD |
| Model Size | 38mm ? 38mm ? 17.5mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power supply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 1100mW |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV2710 (1/2.7??/span> ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1920*1080 |
| Sensitivity | 10mV /(lux-sec) |
| Pixel Size | 3μm x 3μm |
| Maximum Image Transfer Rate |
MJPEG 160x120 30FPS / YUY2 160x120 30FPS MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 352x288 30FPS / YUY2 352x |
