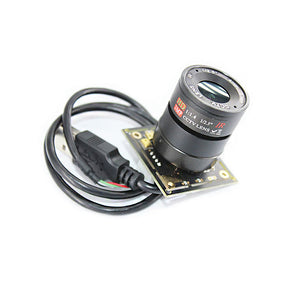

HBV-1710-H264 Fixed Focus 4pin 2 Mega Pixel H.264 MINI USB2.0 Camera Module
Tax included.
Specifications:
| Model No. | HBV-1710-H264 |
| Model Size | 38MM(L)*38MM(W)*38MM(H) |
| Sensor | AR0330 |
| Active array size | 2048*1536 |
| Optical Format | 1/3'' inch |
| Sensitivity | 2.0v/Lux-sec |
| Max S/N ratio | 39dB |
| Dynamic Range | 72.4dB |
| Pixel Size | 2.2um*2.2um |
| Object distance | 30-infinity |
| Interface | 4PIN USB2.0 |
| DFOV | 74degree |
| HFOV | 60degree |
| VFOV | 34egree |
| Operating system | Win XP/Vista/Win7/Win8/win 10Linux with UVC(above linux-2.6.26)Android 4.0 or above with UVC |
| Video Format | MJPG |
| Format output and FPS |
1920*1080(default)30fps 160*120 30fps 176*144 30fps 320*240 30fps 352*288 30fps 640*480 30fps 320*180 30fps 640*360 30fps 1280*720 30fps |
| Video Format | YUY2 |
| Format output and FPS |
1920*1080(default)5fps 160*120 30fps 176*144 30fps 320*240 30fps 352*288 30fps 640*480 30fps 320*180 30fps 640*360 30fps 1280*720 10fps |
| Video Format | H.264 |
| Format output and FPS |
1920*1080(default)30fps 160*120 30fps 176*144 30fps 320*240 30fps 352*288 30fps 640*480 30fps 1280*720 30fps |
| Automatic white balance | ??/td> |
| Exposure | ??/td> |
| Focus | Fixed Focus (the lens is adjustable |
| USB cable | 70CM |
| 1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don?™t make an order for it. Thank you for your understanding | |
Package Inlcuded:
1 x 2 Mega Pixel H.264 MINI USB2.0 Camera Module
1 x USB Cable
Note:
A. Purchase quantity ??0, support lens replacement
B. Purchase quantity ??00, support customization
1. First explain the specific parameter requirements of the product you need, the more detailed the better.
2. Provide product size structure diagram, PIN angle definition, etc.
