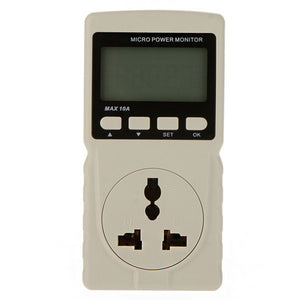

GM86 Digital LCD Micro Power Meter Analyzer Monitor Tester Measuring Power Factor Frequency

GM86 Digital LCD Micro Power Meter Analyzer Monitor Tester Measuring Power Factor Frequency Ammeter Voltmeter

The product adopts the microcomputer chip with high integration and specialized chip for energy metering, along with current sensor and LCD display with high precision, to achieve a comprehensive monitoring of electrical equipment, can be used to monitor the air-conditioners, fridges and microwave ovens and other household appliances.



Features:


Monitor the current value of the active power.

Monitor the current voltage/current/frequency.

Record powering time.

Record power consumption.

Calculate CO2 emissions.

Power factor pick-up.

Set the alarm threshold load.

Large LCD display.



Specification:


Power applied: 220V 50Hz Max 10A(less than 2.2KW)

Precision: 1.0

Constant: 6400imp/kWh

Power Dissipation: <1W

Operating Temperature: 0-45??/div>
