GEPRC SPAN-F7-BT-HD F722 DUAL ICM20689 FC & BLheli_32 50A 4In1 ESC FPV Combo For DJI FPV
Tax included.
Overview:

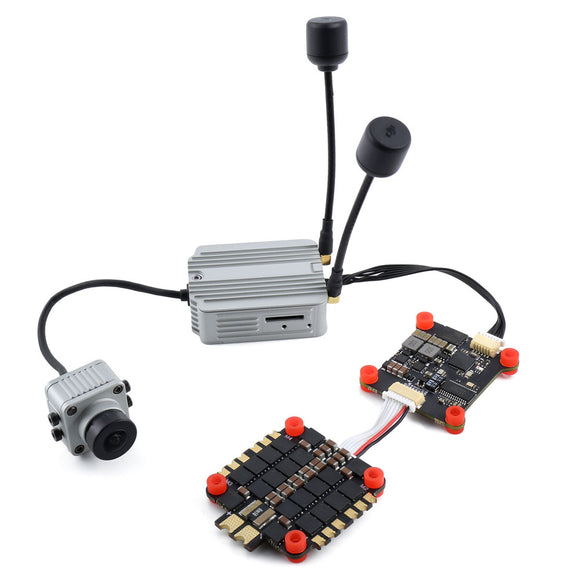

The GEPRC GEP-F7-BT-HD is a new match for the DJI FPV Air Unit, which is very easy. The GEP-F7-BT-HD supports Bluetooth tuning and is very convenient.
The FPV Air Unit features an ultra-low-latency high-definition digital image transmission, 1080p/60fps video recording, and eight frequency channels, allowing eight pilots to fly simultaneously.
SpeedyBee App Download
Android:
https://play.google.com/store/apps/details?id=com.runcam.android.runcambf
iPhone:
https://apps.apple.com/us/app/speedybee-app/id1150315028
Flight Controller Firmware(EXF722DUAL):
https://github.com/betaflight/betaflight/releases
Main Feature:
- MCU: STM32F722RET6
- IMU: 2x ICM20689(SPI)
- Build-In: BlueTooth wireless adapter
- DJI FPV Air Unit Supported.
- BlackBox: 32Mb onboard Flash
- BLheli_32 50A ESC 4in1 3-6S
- Integrated LC Filter
- Simple installation method, compact space
- Support:Sbus,PPM,CRSF,DSMX,iBus
Specifications:
F722 DUAL ICM20689 Flight Controller:
- MCU: STM32F722RET6
- IMU: 2x ICM20689(SPI)
- Build-In: BlueTooth wireless adapter (SpeedyBee APP)
- BlackBox: 32Mb onboard Flash
- OSD: BetaFlight OSD w/ AT7456E chip
- Baro: BMP280
- BEC Output: 5V@2A / 9V@2A
- Integrated LC Filter
- Firmware target: EXF722DUAL
- Size: 36x36mm board, φ4mm with Grommets φ3mm
- Power input: 3-6S LiPo
- 5x UART
- 8x Motor outputs
BL32 50A ESC 4IN1:
- MCU: STM32FO51K86(32bit 48mHz)
- Continuous Current: 50A
- Peak Current: 55A (5S)
- Current sensor: YES
- Telemetry: Supported
- Support DSHOT1200/DSHOT600, PWM, Multishot, OneShot
- Firmware Version:GEPRC-BL32-4IN1
- Input Voltage: 3-6S Lipo
BLHeliSuite download:
http://www.mediafire.com/file/hkln8fcaif5s9l8/BLHeliSuite32_32616a.zip/file
Package Included:
- 1x F7 Flight Controller Board
- 1x 50A ESC Board
- 1x 8pin Cable
- 1x 6pin DJI Cable
- 1x 35v 220uf Capacitor
- 1x XT60 Power cable
- 12x Silicon grommets M4 to M3
- 4x M3*25 YFS screw
- 4x M3*30 YFS screw
- 8x M3 Nylon nut
