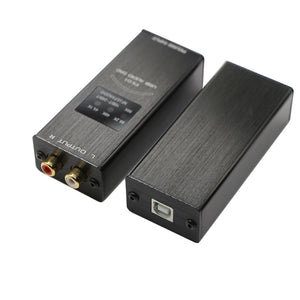

FX-AUDIO FX-01 Mini USB DAC Audio Amplifier USB Sound Card 24bit Decoder Sampling Rate Amplifier
Tax included.
Features:
USB receiver unit - the main chip SA9023, the USB audio stream into I2S digital audio format, the supply of digital audio decoder. Maximum support 24bit resolution, 96K sampling rate, Taiwan Sheng Wei advanced technology products. Today's mainstream USB interface chip, Support plug and play, you can also install ASIO drive, through the I2S digital signal to the back of the DAC
DAC digital-analog conversion decoding unit - the main chip PCM5102A, maximum support 32bit resolution, 384K sampling rate, the United States Texas Instruments produced. From Texas Instruments latest advanced segmented DAC architecture, integrated after decoding the analog signal I / And LPF, the maximum output 2.1Vrms
Power supply part, using two AMS1117, respectively, to the digital and analog part of the power supply, can achieve good results
Input interface: PC-US
Output interface: RCA L R channe
Output Level Range: 2V RMS (Max
Frequency response: 20HZ-20KH
Sampling rate: 16 / 24BIT 44.1K 48K 88.2K 96
Distortion: THD + N: < 0.005% (RL = 10 kΩ
Signal to noise ratio: > 100 d
Dynamic range: > 95 d
Supply voltage: 5 V (USB powered)
PCB process: immersion gol
Shell: aluminum wire drawin
Size: about 92 x 40 x 25MM
Weight: about 10
Package Included:
1 x FX-01 Digital Amplifier
1 x USB Cable
