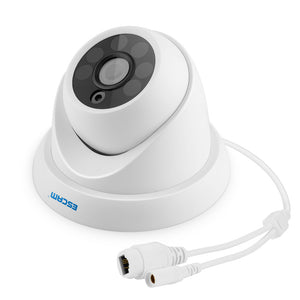

ESCAM QH001 ONVIF H.265 1080P P2P IR Dome IP Camera Motion Detection with Smart Analysis Function
Tax included.
Features :
1.H.265 2MP HD 1080P.
2.Support smart analysis function:
Target Count---Calculating body or object flow
Object Left/Lost---It will issue an alarm when items are left or lost
Area Detection---Detecting target in the area
Line Crossing---It will issue an alarm after crossing the warning line
3.Support Day/Night, IR distance 15m, make your night view as daytime.
4.Support Motion Detection/app push.
5.Support 3D Digital Noise Reduction.
6.Supprt max to four private mark areas.
7.Support CMS viewing, APP viewing and Brower viewing.
8.Support onvif, compatible with other devices.
Specification :
| Model | ESCAM QH001 | |
| Camera | ||
| Sensor | 1/2.9" CMOS | |
| Effective Pixels | 2MP | |
| Electronic Shutter Speed | Auto/Manual, 1/25~1/10000s | |
| Minimum illumination | Color: 0.01Lux@F1.2; B&W: 0Lux@F1.2(IR on) | |
| Lens | 3.6mm fixed lens | |
| Angle of View | 75.7° | |
| Functions | ||
| Day/night switch | 15M(6 x IR Lamps) | |
| White Balance | Auto white balance | |
| BLC | Support BLC | |
| S/N Ratio | ≥50db (AGC closed) | |
| Digital noise reduction | Support 3D noise reduction | |
| WDR | Support D-WDR | |
| Motion detection | Support motion detection | |
| Private shelter | Support 4 zones | |
| OSD | Support OSD setting | |
| Smart Analysis | Target Count, Object Left/Lost, Area Detection, Line Crossing | |
| Video | ||
| Compression | H.264/H.265 | |
| Resolution | Mainstream: 1080P(1920*1080) | |
| Substream: D1(704*576), VGA(640×480) | ||
| Video frame rate | 1-20FPS | |
| Biterate | 16Kbps-4Mbps continuously adjustable, support CBR / VBR | |
| Video adjustment | brightness, saturability, chromacity adjustment | |
| Audio | ||
| Audio | Not support | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| IP type | Dynamic IP and Static IP | |
| Network agreement | TCP/IP, DHCP, HTTP, HTTPS, NTP, DNS, RTP , RTSP | |
| Access protocol | Support ONVIF | |
| Max user qty | 4 | |
| Client | iOS, Android, Windows PC | |
| General | ||
| Power supply | DC12V 1A | |
| Power Consumption | <6W | |
| Working Environment | -20°C to +60°C, 10%-90% | |
| Dimension | 108mmx108mmx75mm | |
| Weight | 0.16kg | |
| Package Dimension | 135mmx135mmx130mm | |
| Package Weight | 0.28kg | |
Package includeds :
1 x ESCAM QH001 IP Camera
1 x Power adapter
1 x Set of Screws
1 x User Manual
