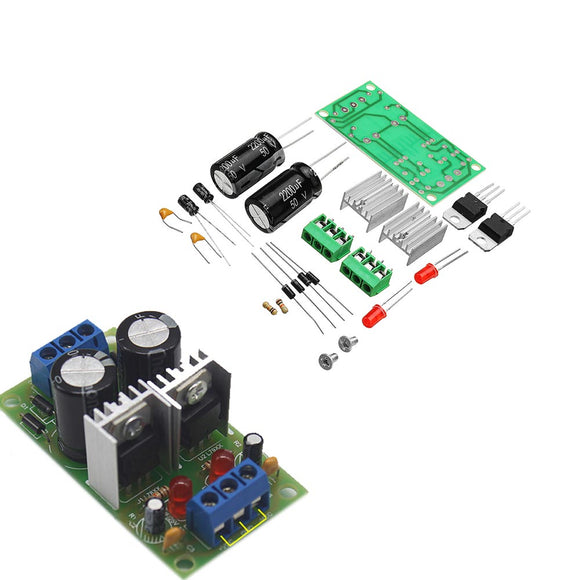

DIY LM7812+LM7912 Dual Voltage Regulator Rectifier Bridge Power Supply Module 5V 12V Kit

Description:



Large capacity electrolytic filter capacitor + high frequency monolithic capacitor filter, so that the output DC more clean and stable, with power indicator, easy to observe the state.

Input voltage: AC dual 5-18V, DC dual 7-24v

Output voltage: Output current: 1.5A x 2

Circuit size: 62 x 33 x 25mm( LxWxH )

Note:

To obtain sufficient DC voltage, the input AC must be equal to or higher than the output DC voltage. For example, if you want to output + 12V double DC, then the transformer should choose two 12V or higher than double 12V.

When exporting double voltage, be sure to input positive and negative double voltage.



Package Included:

1 x DIY Dual Voltage Regulator Rectifier Bridge Power Supply Module Kit
