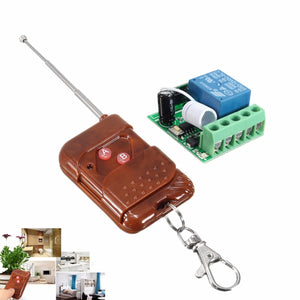

DC 12V 10A 1CH 433MHz Relay Wireless RF Remote Control Switch Receiver With Transmitter

DC 12V 10A 1CH 433MHz Relay Wireless RF Remote Control Switch Receiver With Transmitter

  • R 180.00
    Unit price per
  • Save R 180
Tax included.

SKU:

Specification:

Receiver
1.Input Voltage: DC10-14V
2.Standby Current: <5MA
3.RF Frequency: 433MHZ
4.RF Working mode:Super heterodyne receiver
5.Receiver Sensitivity: >90dBm
6.Remote Control Distance: >100 meter(In open environment)
7.Decoding Way: MCU Software decoding
8.Can store the number of remote control:50
9.Support remote control type: Fixed code, learning code
10.Channel: 1CH
11.Multiple working modes: (Jog/Non-Latched ,inter-lock/Latched ,self-lock /Self-Latched,Delay off)
12.Wiring Method:Fixed wiring terminal
13.Working Voltage: DC12V
14.Output Current: 10A
15.Rated load:10A 250VAC / 10A 125VAC
10A 30VDC / 10A 28VDC
16.Output:Normally open,Common,Normally closed
17.Dimension:3.5cm*3cm*1.6cm


Transmitter
1.Material:ABS Plastic
2.Battery:23A Battery (Battery is not included)
3.Operating voltage: 12V
4.Frequency: 433MHZ
5.Reference distance: 150 meters (This is the theory distance in open environment without interference, practical application due to the interference environment and decreased)
6.Current job: 9 ~ 12mA
7.Transmitting power: 10-15mw
8.Frequency deviation: ± 0.2MHz
9.Size (LxWxH): 58x38x15 (mm)

Working/output way:

1.Jog/Non-Latched: Press one button is Working /ON. Loosen your finger on the same button is Stop/OFF. One channel switch need one buttons remote control.
2.Self -lock/Self-Latched: Press one button for one time is working/ON. Press the same button again is stop/OFF. One channel switch need one buttons remote control.
3.Inter-lock /Latched: Press one button is working/ON, press another button is stop/OFF. One channel switch need 2 buttons remote control.
4.Delay: Press remote control relay pull-in,release the remote control and begin timekeeping,after 5s,10s,15s will automatically close the relay

Description:

1. press the learning code .the indicator flash ,loosen your finger ,press any button of the remote control
the indicator flash 2 times and off .it mean you learn it successfully .
2. it can learn more than 12 PCS 2262 or 1527 chip with the different code wireless 433MHz remote control
3. remove/clean :press the learning button about 8 seconds , the indicator turn on to off, it means the information that you keep have been removed successfully .

Package included:

1 x 12V 1CH 433MHz Wireless Relay Switch
Receiver
1 x 433MHz Wireless Remote Control (Battery is not included)
