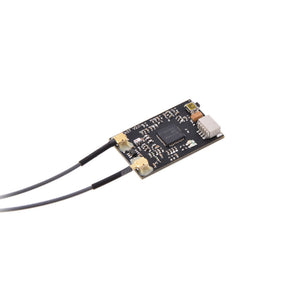

AGFRC MRFS01 2.4G FASST Mini Receiver Compatible SBUS RSSI Output for Mini RC Drone FPV Racing
Tax included.
AGFRC MRFS01 2.4G FASST Mini Receiver Compatible SBUS RSSI Output for Mini RC Drone FPV Racing
Specification:
Brand name: AGFRC
Item name: MRFS01 receiver
Operating Voltage: 4.8V~8.4V
Dimension: 28x18x5mm (exclude antenna)
Weight: 3.8g
Antenna: Dual-antenna
Output Channels:S-BUS(16CH) + RSSI(PWM)
Compatibility:
Compatible Futaba FASST remote control system
Suitable for Futaba 6EX, 7C, TM-7, TM-8, T8FG, T10C, TM-10, T10CG, T12Z, T12FG, TM-14, T14MZ, T18MZ etc FASST remote control
Feature:
1) High quality PA to ensure high receiving sensitivity;
2) Dual-antenna design, available to mount in different angle to increase the reception reliability;
3) Serial signal S-BUS (16CH) output, connect directly to flight control system, especially for mini multirotor and aircraft to save mounting space;
4) RSSI(PWM) output, available to detect the signal changes of the radio control via receiver.
Bind Procedure:
1. Get the transmitter and the receiver ready;
2. Turn on the transmitter;
3. Press the SW on the receiver and power on, the LED in the receiver changes to solid green while complete, the receiver start to work;
It could be failed binding as for the environment, please repeat the above steps.
LED Status:
Package included:
1x MRFS01 receiver
Specification:
Brand name: AGFRC
Item name: MRFS01 receiver
Operating Voltage: 4.8V~8.4V
Dimension: 28x18x5mm (exclude antenna)
Weight: 3.8g
Antenna: Dual-antenna
Output Channels:S-BUS(16CH) + RSSI(PWM)
Compatibility:
Compatible Futaba FASST remote control system
Suitable for Futaba 6EX, 7C, TM-7, TM-8, T8FG, T10C, TM-10, T10CG, T12Z, T12FG, TM-14, T14MZ, T18MZ etc FASST remote control
Feature:
1) High quality PA to ensure high receiving sensitivity;
2) Dual-antenna design, available to mount in different angle to increase the reception reliability;
3) Serial signal S-BUS (16CH) output, connect directly to flight control system, especially for mini multirotor and aircraft to save mounting space;
4) RSSI(PWM) output, available to detect the signal changes of the radio control via receiver.
Bind Procedure:
1. Get the transmitter and the receiver ready;
2. Turn on the transmitter;
3. Press the SW on the receiver and power on, the LED in the receiver changes to solid green while complete, the receiver start to work;
It could be failed binding as for the environment, please repeat the above steps.
LED Status:
| GREEN LED | RED LED | Status |
| Solid | Solid | Ready to bind |
| Solid | Off | Receiving signals |
| Solid | Blink | Signal loss |
Package included:
1x MRFS01 receiver
