AC 110-220V 500W Air Cooling Spindle Motor with 52mm Clamp and Power Supply Speed Governor
Tax included.
Description:
AC 110-220V 500W Air Cooling Spindle Motor with 52mm Clamp and Power Supply Speed Governor
Specification:
Spindle Motor Product Parameters:
Power: 500W
Operating voltage: 12-100VDC
Idle speed: 2000-12000 rev/min
Torque: 0.5NM
Insulation resistance:>2 megohms
Dielectric strength: 400V
Diameter: 52MM
Chuck portion length: 45MM
Chuck portion diameter: 16MM
Motor Length: approx. 190MM
High precision spindle run out : 0.01-0.03
Can be used for solid wood PCB engraving drilling and so on.
Speed Governor Product Parameters:
Input voltage: AC110-AC220V±10% , 50/60Hz
Current limit: 6A
The adaptation motor power: 50W-500W
Armature output voltage: DC0-100V adjustable
Dimensions: 130*100*51mm(L*W*H)
Wiring: terminal (convenient)
ER11 Chuck Collet Parameters:
Material: Carbon Steel
Model: ER11
Material: 65MN
Apply to: boring, milling, drilling, tapping, sculpture, CNC, spindle machine and other processing.

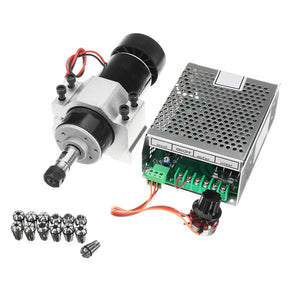

Package Included:
1pc x 500W Spindle Motor
1pc x Speed Governor
1pc x 52MM Mount Bracket
13pcs x ER11 Collet
Kindly Remind:
-- Ambient air temperature: -10 ~ 40 ° C.
-- The relative humidity of 85% or less, well ventilated.
-- Installed in a well-ventilated, no severe impact, no vibration, no explosion of dangerous media and no conductive metal particles of the occasion.
Notice:
1. Please allow a bit error due to manual measurement. please make sure you do not mind before you bid.
2. The color may have different as the difference display, pls understand.
