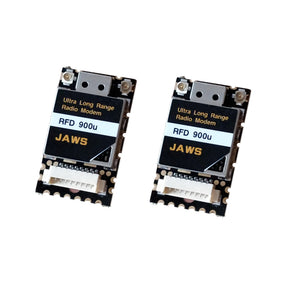

A Pair 10KM Ultra Long Range RF900Mini 915MHz RFD 900U 3DR Radio Telemetry Modem Module For RC Drone

Tax included.

10KM Ultra Long Range RF900Mini 915MHz RFD 900U 3DR Telemetry Radio Modem

Appearance

Size: 19.0 mm (wide) x 30.4 mm (long) x 4.5 mm (thick) ,Including RF Shield and maximum connector extremeties

Weight: 2.7g

Mounting: 2 x M1.5 screws

Interface

RF: 2 PCS u.FL/IPX, TTL

Connector : DF13, 8CH

Specification

Frequency Range : 902 - 928 MHz (USA)

Output Power: 100mW (+20dBm), controllable in 3dB steps

High Gain : >24dB

Long Distance : >10km

SAW filter

128kB flash memory,8kB RAM

Air Data transfer rates:

4, 8, 16, 19, 24, 32, 48, 64, 96, 128, 192 and 250 kbit/sec ( User selectable, 64k default )

UART data transfer rates:

2400, 4800, 9600, 19200, 38400, 57600, 115200 baud ( User selectable, 57600 default )

Receive Sensitivity:

<-111dBm at 9.6kpbs,

<-107 dBm at 64kbps,

<-105dBm at 129kbps (air serial speed)

Power Supply: +5V nominal(+3.5 V min, +5.5 V max)

~190mA TX +20dBm

~230mA peak TX +20dBm

~77mA RX

Temp. Range: -40 to +85 deg C

Package Included

2 x RF900MINI Module

Temp. Range: -40 to +85 deg C
