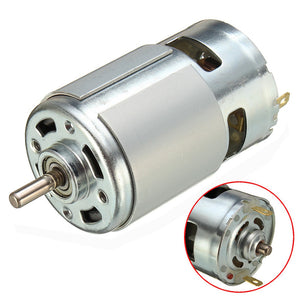

775 Motor DC 12V-36V 3500-9000RPM Motor Large Torque High Power Motor
Tax included.
Description:
775 Motor DC 12V-36V 3500-9000RPM Motor Large Torque High-power Motor
Specification:
Model | 775 |
Shaft Diameter | 5mm |
Shaft length | 17mm |
Body length | 66.7mm |
Front steps diameter | 17.4 mm |
Former high level | 4.7 mm |
Body diameter | 42 mm |
Motor Overall Length | 98 mm |
Diagonal installation pitch | 28.8 mm |
Mounting hole size | M4 |
Mounting hole | 2 |
Torque | 2kg.cm or 0.2N.M |
![](http://img.staticbg.com/images/oaupload/banggood/images/54/55/00500f42-3865-4ede-ba4e-fe1f410cbabc.jpg)
Voltage(V) | Current(A) | Speed(RPM) |
12 | 0.14 | 3500 |
18 | 0.15 | 4500 |
24 | 0.16 | 7000 |
30 | 0.17 | 8100 |
36 | 0.20 | 9000 |
Feature:
Ball bearing, with cooling fan.
This is the front end of the motor ball bearing, copper sets of back-end, 5 groups winding, at a voltage of 24V, large torque, low noise.
Used in electric tool motors, power is very large, you can make a small spindle motor, and is also suitable for DIY aspect.
Package Included:
1x DC motor
Notice:
1.Please allow 1-3mm error due to manual measurement.Pls make sure you do not mind before you bid.
2.The color may have different as the difference display,pls understand.
