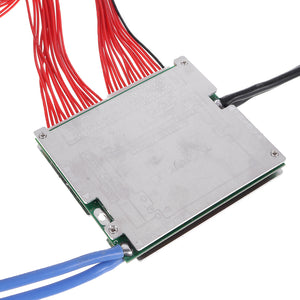

6S to 28S 100A BMS Battery Protection Board with Balancing for Electric Motor Car PCM 18650 Battery Pack Lithium Balance Charging Board

Features:



1. Over charge  detection voltage: Min:4.23V  Typ:4.25V  Max:4.27V

2. Over charge  recover voltage: Min:4.14V  Typ:4.19V  Max:4.24V

3. Over discharge detection voltage : Min:2.72V  Typ:2.8V  Max:2.88V

4. Over discharge recover voltage: Min:2.9V  Typ:3V  Max:3.1V

5. Discharging current(continuous): Min:A  Typ:100A  Max:A

charging current: 10A

6. Over discharge protection current: Min:A  Typ:430A  Max:A

7. Balance: Min:  Typ:Yes  Max:

8. Balancing voltage: Min:V  Typ:4.18V  Max:V

9. Balancing current: Min:mA  Typ:60mA  Max:mA

10. Overdischarging voltage protection  delay: Min:105mS  Typ:140mS  Max:175mS

11. Over distcharge current protection delay time: Min:18mS  Typ:24mS  Max:30mS

12. Idle current: 85uA

13. Temperature protection: yes

14. Over current protection : charging recovery



Package Included:



1 x 6S to 28S 100A BMS Battery Protection Board with Balancing
