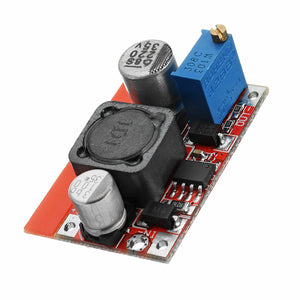

5V 6W DC-DC Step Down Module Adjustable Power Supply Module with Output Short Circuit Protection
Tax included.
5V 6W DC-DC Step Down Module Adjustable Power Supply Module with Output Short Circuit Protection
Description:
Input voltage: 5-24V
Output voltage: 3-22V adjustable
Output power: 6W(Max)
Output Max Current: 12V:3.6V/1000mA(3.6W)
Description:
Input voltage: 5-24V
Output voltage: 3-22V adjustable
Output power: 6W(Max)
Output Max Current: 12V:3.6V/1000mA(3.6W)
12V:5V/800mA (4W)
12V:9V/500mA (4.5W)
24V:12V/400mA(4.8W)
24V:16V/330mA(5.28W)
24V:19V/310mA(5.89W)
Input static Current: 6V/2.4mA; 12V/3.8mA:24V/10mA
Short circuit protection: Yes
Input Reverse Polarity Protection: Yes
Dimensions: 33mm * 18mm * 13mm
Application: This module can be used in batteries, power transformers, DIY adjustable power supply.
Input static Current: 6V/2.4mA; 12V/3.8mA:24V/10mA
Short circuit protection: Yes
Input Reverse Polarity Protection: Yes
Dimensions: 33mm * 18mm * 13mm
Application: This module can be used in batteries, power transformers, DIY adjustable power supply.
Package included:
1 x DC-DC Step Down Module
