5V 5mm High-Brightness Colorful RGB LED Module with 9G Servo + Fixed Colums for Smart Robot Car

Features:

??nbsp;This kit includes: 5mm RGB LED module, high-quality servo, fixed colums.

??nbsp;High brightness: It is consists of 2 high-brightness RGB color LEDs. Brightness at night will be more obvious.The search distance is 2 meters abnormal

??span style='color:#ff0000;'> Various colors: The lights are composed of three colors of red, green and blue, which can be combined with various color effects.

??nbsp;Special design: Easy to install with 9G servo, no need for other adapter tools, directly tighten the screws.

??nbsp;Expansibility: Compatible with multi-function expansion boards, especially support for Yahboom BST-4WD smart car expansion board.Ultrasonic module can be superimposed for use to achieve ranging + search function. It can be used alone with products such as development boards, such as: Arduino/51/STM32/Raspberry Pi.

??nbsp;It supports 4pin cable and DuPont line connection, and can be used for smart cars, robots and other equipment.

File for you to download:

1. manual

Specifications:

5mm RGB LED module:
- Size: 56*43mm

- Weight: 6.3g

- Lamp beads diameter: 5mm

- Color: red, green and blue three primary colors (can be combined into various colors)

- Input: Digital / Analog Level

- Voltage: 5V

- Brightness: High brightness

- Interface: 4pin (GND, R, G, B)



Servo:
- Voltage: 5 V

- Weight: 9 g

- Size: 32 mm * 22 mm * 12 mm

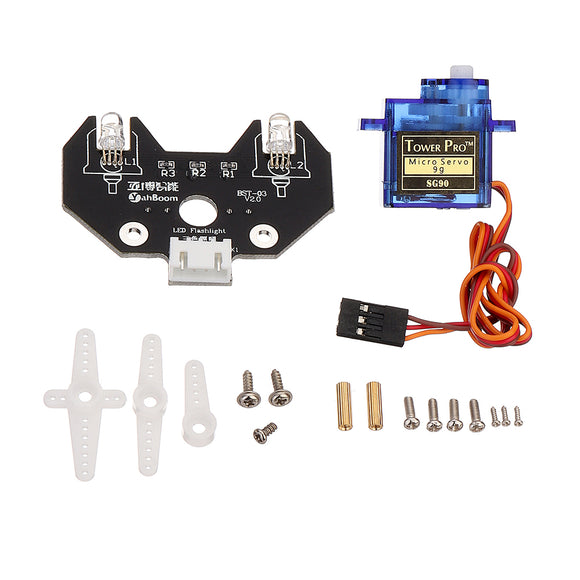

Package Included:

1 x 5mm RGB LED module

1 x 9G servo

1 x Copper column and screw package
