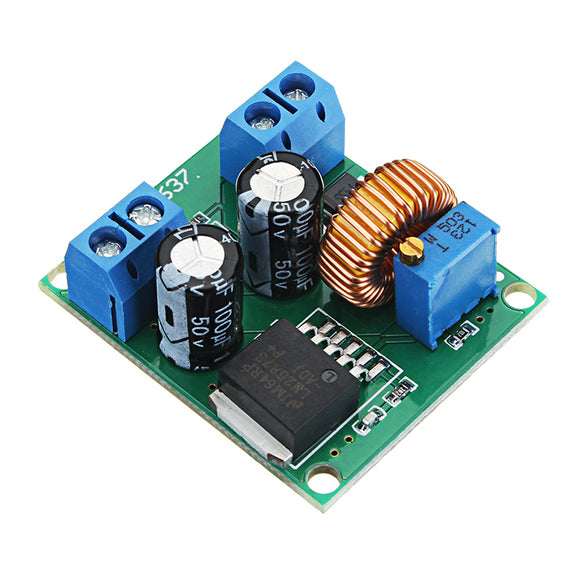

5pcs 3V/5V/12V to 19V/24V/30V/36V DC Adjustable Boost Module LM2587 Power Supply Board

Feature:



Input: 3V-35V

Output: 4V-40V adjustable

Efficiency: 94% (MAX)

Dimensions: 37 x 32 x 15mm (L x W x H)

Operating temperature: -40°C to +85°C

Load capacity: Limited 80W

Connection mode: Terminals are not welded, IN is input, and OUT is output

Note: The smaller the differential voltage between the input and output voltages, the greater the carrying capacity and the higher the efficiency.

Test parameters:



Input voltage	Output voltage	Limited output current	Power
3V	15V	1A	5W
5V	12V	1A	12W
5V	9V	1.5A	13.5W
9V	12V	2A	24W
12V	19V	1.5A	28.5W
12V	24V	1.2A	28.8W
19V	24V	2A	48W
24V	30V	2A	60W
30V	35V	2A	70W

Package includes:



5 x DC Adjustable Boost Module
