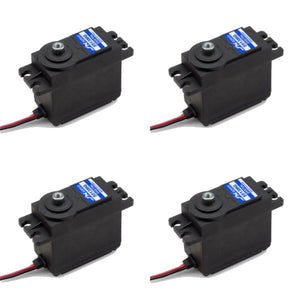

4X JX Servo PDI-5513MG 13kg Metal Gear High Torque Digital Servo For RC Models
Tax included.
4X JX Servo PDI-5513MG 13kg Metal Gear High Torque Digital Servo For RC Models
Description:
Brand Name: JX Servo
Item NO.: PDI-5513MG
Package Included:
4x JX Servo PDI-5513MG 13kg servo
4x Accessories
Description:
Brand Name: JX Servo
Item NO.: PDI-5513MG
Dead Band: 2μs
Working Frequence: 1520μs / 330hz
Maximum Pulse Width: 900-2100us
Maximum Angle: 120°
Working Voltage: DC 4.8 - 6.0V
Working Frequence: 1520μs / 330hz
Maximum Pulse Width: 900-2100us
Maximum Angle: 120°
Working Voltage: DC 4.8 - 6.0V
Operating Speed (4.8V): 0.20 sec/60°
Operating Speed (6V): 0.18 sec/60°
Stall Torque (4.8V): 11.75 kg.cm (163.21oz/in)
Stall Torque (6V): 13.06 kg-cm (181.40 oz/in)
Dimensions: 40.5X20.2X40mm
Weight: 55.6 g (1.96oz)
Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2BB
Output Gear: 25T (Futaba compatible)
Output Gear: 25T (Futaba compatible)
Features:
- High performance digital standard servo
- High-precision Taiwan-made metal gears
- High quality brushed motor
- Dual ball bearings
Package Included:
4x JX Servo PDI-5513MG 13kg servo
4x Accessories
