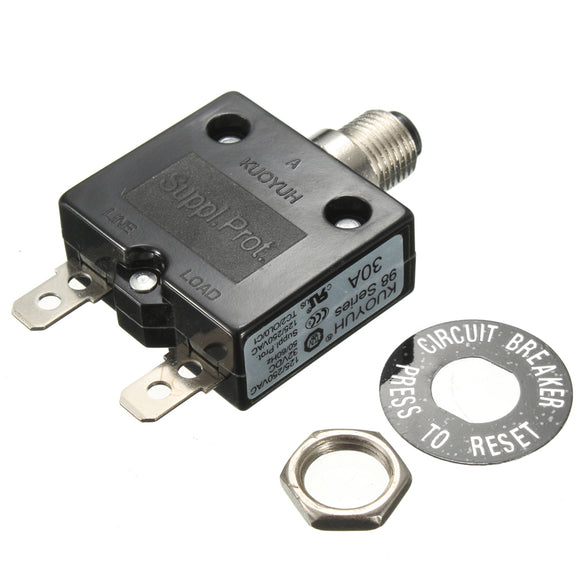

30A 125V/250VAC 32VDC Thermal Protector Overcurrent Overload Protector Circuit Breaker
Tax included.
Description:
- When the load exceeds the rated current, this switch reset button will automatically cut off the circuit and thus play a role in protecting the line.
- This switch can be reset after a disconnect over a period of time, then you can press the reset switch to use it again.
Feature:
- Rated current: 30A
- Rated Voltage: 125/250V AC, 32V DC, 50-60HZ
- Break capacity: 1000A x 125V AC, 200A x 250V AC
- Pressure ability: 1500V AC for 1 minute, the leakage current is less than 0.5mA
- Minimum Voltage: less than 0.25V
- Reset time: within 60 second
- Insulation resistance: 500V DC continuous for 5S, the insulation resistance will be more than 100MΩ
Package included:
1 x Load Protector
1 x Screw ring
1 x Ring
