3.5 inch TFT LCD Touch Screen + Protective Case + Touch Pen + 16G Micro SD Card Kit For Raspberry Pi

Features:

-Take photos by touch pen.
-480×320 pixel resolution, better display.
-Driver provided (works with custom Raspbian directly).
-Supports any revision of Rasp Pi (directly-pluggable).
-Designed for Raspberry Pi, an ideal alternative solution for monitor.
-Support software keyboard (system interaction without keyboard/mouse).
-The protective case can support cooling fan or display screen (notes: can not support assemble at the same time)
-Provides the best available protection/accessibility for Model B, Protect and secure your Rasp Pi from shocks, scratches and dust.

Parameter:

LCD Type	TFT
LCD Interface	SPI
Touch Screen Type	Resistive
Touch Screen Controller	XPT2046
Colors	65536
Backlight	LED
Resolution	320*480 (Pixel)
Aspect Ratio	8:5
Power Consumption	TBD
Backlight Current	TBD
Operating Temp. (Centigrade)	TBD

Interface Definition:

PIN NO.	SYMBOL	DESCRIPTION
1, 17	3.3V	Power positive (3.3V power input)
2, 4	5V	Power positive (5V power input)
3, 5, 7, 8, 10, 12, 13, 15, 16	NC	NC
6, 9, 14, 20, 25	GND	Ground
11	TP_IRQ	Touch Panel interrupt, low level while the Touch Panel detects touching
18	LCD_RS	Instruction/Data Register selection
19	LCD_SI / TP_SI	SPI data input of LCD/Touch Panel
21	TP_SO	SPI data output of Touch Panel
22	RST	Reset
23	LCD_SCK / TP_SCK	SPI clock of LCD/Touch Panel
24	LCD_CS	LCD chip selection, low active
26	TP_CS	Touch Panel chip selection, low active

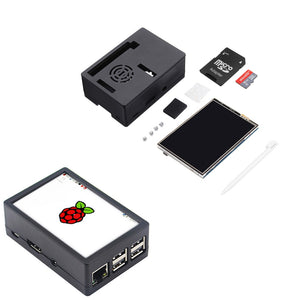

Package included:

1 x Touch Screen LCD
1 x Protective Case
1x 16G SD Card
1x Card Adapter
1 x Touch Pen
4 x Non-slip mat
4 x Screws
