220MM LED Dimmable Backlight Rigid Strip Kit Light Update CCFL LCD Screen For Monitor

Specifications:
Material:Fiberglass panels
Size:220mm(8.66")x2.1mm(0.08")
Driver board size:84mm(3.3")x11.1mm(0.43")
Input Voltage:12V
Output Voltage:9V
Power:4W

Features:
* The product of the original display-specific lights, high brightness, can not look directly
* LED particles close, high-density arrangement bright LED SMD imports
* Long life, is a display design, the life of 100,000 hours
* Easy to install, use double-sided tape can be attached to the original LCD display tank, or posted elsewhere
* Energy saving, power only 4W. Original four LCD power is generally 24W.

The following are the installation instructions for reference (for reference only):
Easy modification steps:
1, open the metal frame:
2, cut the inner plastic protective frame angle:
3, out of the liquid crystal lamp:
4, insert the LED light bar

Note: this modification method is simple, easy to light leakage. But it will destroy the border.

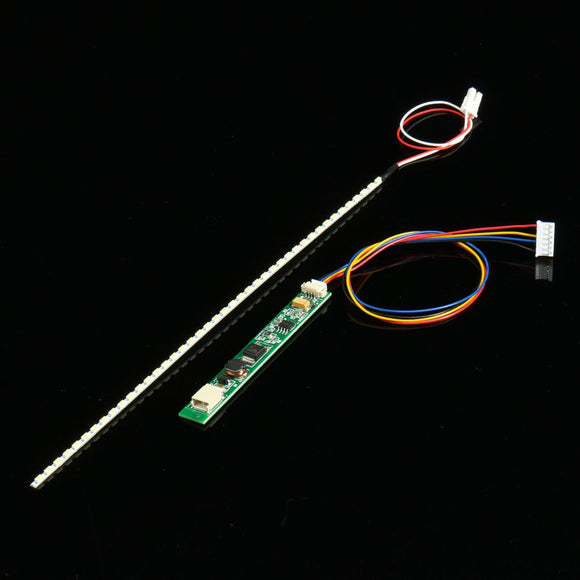

Package included:
1x LED strip
1x Driver board
1x cable
