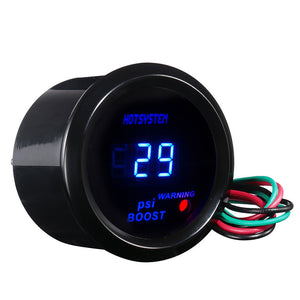

2 Inch 52mm Black Cover Car Universal Digital Blue LED PSI Turbo Boost Gauge Meter
Tax included.
Description:
This series is fully electronic with a blue digital LED readout, which allows for easy viewing at all angles during any lighting conditions. Each gauge includes an electronic sender along with 6 feet of PVC hose, and a T-fitting.
Specification:
This series is fully electronic with a blue digital LED readout, which allows for easy viewing at all angles during any lighting conditions. Each gauge includes an electronic sender along with 6 feet of PVC hose, and a T-fitting.
Specification:
Size: 2 inch gauge or 52 mm diameter
Power: 12V / MAX 0.3A
Unit: PSI
Warning light will light up when boost reaches over 21 psi
Style: Blue Digital Readout
Color: Black
Installation:
Installation:
1.Gauge may be mounted in 2"/52mm dia holes or in auto gauge custom mounted panels. secure gauge with mounting clamps supplied.
2.Drill 3/8" holes and install rubber grommets where pressure or vacuum line passes through sheet mental such as firewall.
3.Attach nylon pressure line to fitting on back of gauge using adaptor, ferrule, and compression nut. Route line through grommets to engine compartment. Connect line to pressure port on engine by using 1/8" adaptor ferrule and compression nut for turbo and prossure gauge or 1/8"
adaptor and fitting for vacuum gauge.
adaptor and fitting for vacuum gauge.
4.Start engine and thoroughly check installation for leaks.
5.Twist in light socket assembly and connect one wire(yellow) to dash lighting circut or other 12V power source and the other wire(black) to a good ground.
Package Included:
Package Included:
1 X Boost Gauge
1 X Sensor
1 X PVC Hose (6 feet)
1 X T-Fitting
