2.4GHz nRF24L01P RF Wireless Module For Networking With PCB Antenna SMD Transmitter And Receiver
Tax included.
Electric Parameters:
Module size : 12 x 19mm
Module weight : 0.5g
Operate frequency : 2.4GHz ~ 2.525GHz
Supply voltage : 1.8 ~ 3.6V DC
Measured distance : 120m
Air rate: 250k ~ 2Mbps
Communication Interface :SPI
Receiving current :12.6mA
Sending current : 16mA@20dBm
Receiving length : Each data packet 1-32 byte
Receiving sensitivity : -94dBm@250kbps
Feature:

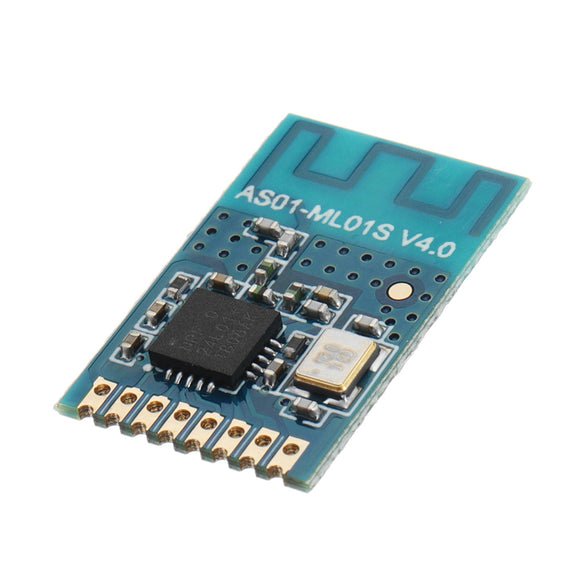

AS01-ML01S is a 1mW, industrial-grade wireless transceiver integrated data transmission module with high-speed (maximum air speed is up to 2Mbps) and high stability working in 2.4GHz frequency. The module comes with high-performance PCB antenna, accurate impedance matching, using NORDIC original nRF24L01P RF chip, working in the 2.4GHz ~ 2.5GHz ISM band. The module has enough transmitting power, good spectrum characteristics, small harmonics, small crosstalk, small size.
Package Included:
1 x Wireless Module
